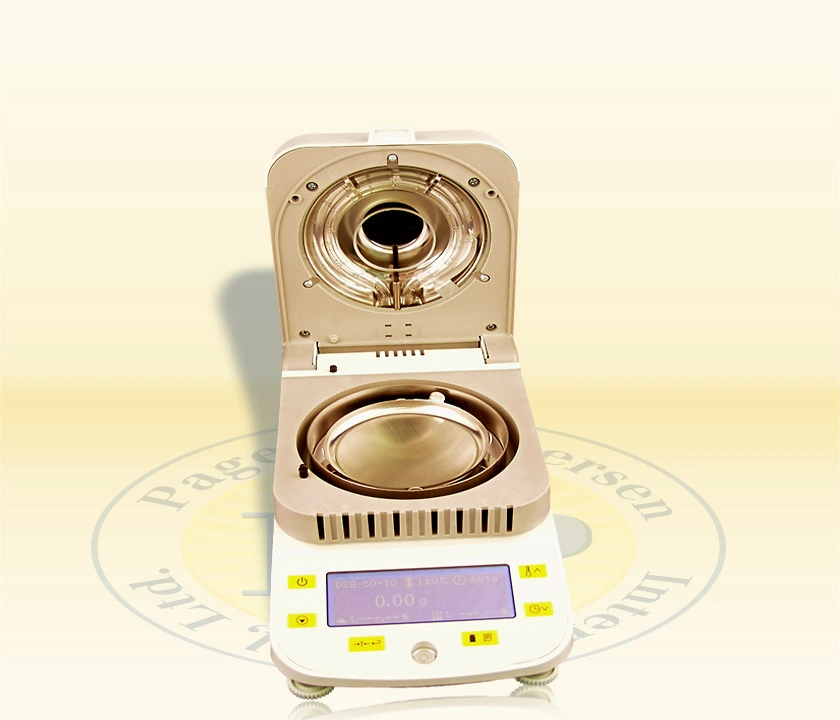

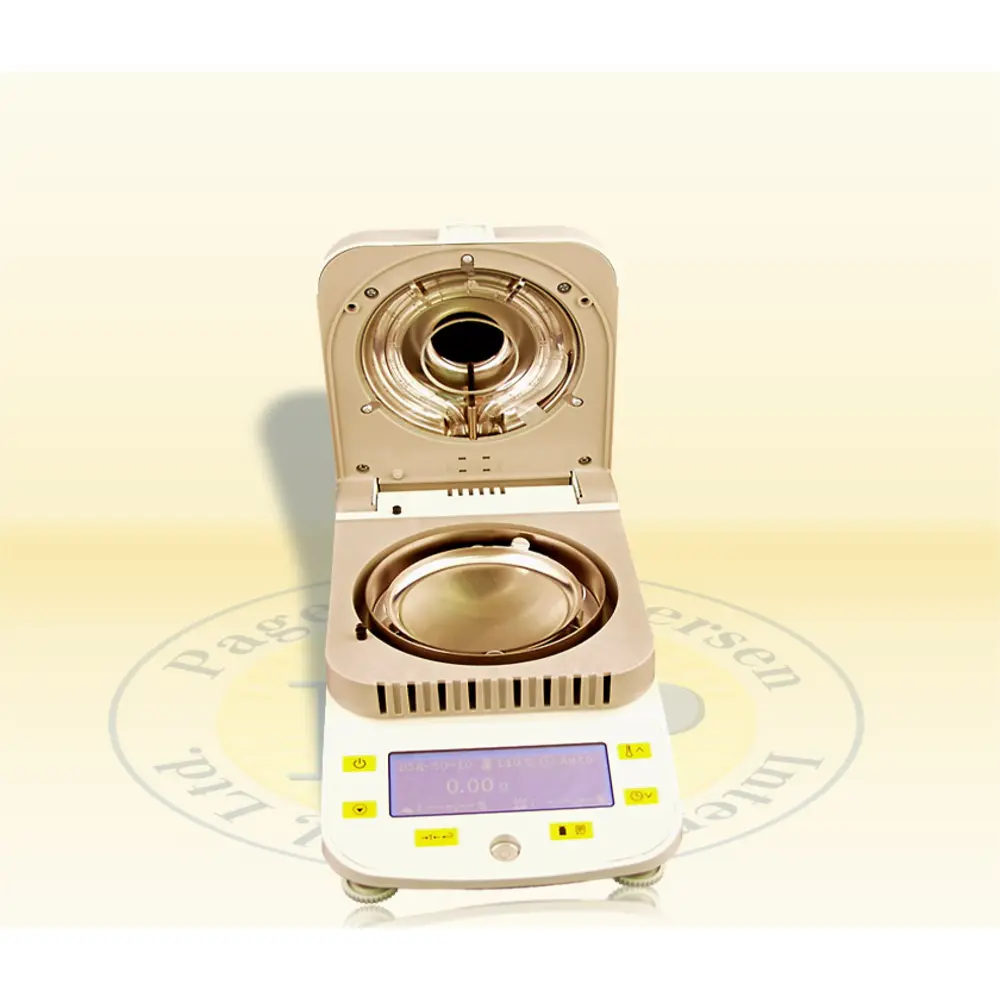

Page & Pedersen P2MA-50 Moisture Analyzer
Featuring safe, intuitive ease of operation, the P2-MA-50 Moisture Analyzer provides accurate measurements of moisture in yogurt, cheese, and other dairy products at the push of a button. Obtain rapid, reliable results when you want them, where you want them. A sealed membrane keypad and rugged design invite ease of integration at any point throughout the Dairy plant (production, quality control, central lab, R&D). Particularly with value-added products, such as cheeses and cheese spreads, the precise analysis of moisture helps determine shelf life and/or suitability of aging, access micro-biological considerations and also potential profitability.
Key Features
- Halogen/infrared heat source technology accommodates a wide range of dairy products
- Real-time digital monitoring of results and an automatic shut off
- Ultra-clear read-out displays in-process results and retains the final reading until the next test is run
- Practical benefits include stream-lined calibration and maintenance
- Results can be automatically saved to a computer, digitizing records facilitating greater transparency, more savvy management decisions, and assisting compliance with regulatory requirements for in-depth record keeping
| Specifications for P2MA-50 Moisture Analyzer | |
|---|---|
| Electrical Parameters | |
| AC Power Supply Voltage | 110 or 220 (±10%; specify when ordering) |
| Power Consumption | 250 Watts (max when operating) |
| Operating Temperature | 10 to 30°C |
| Relative Humidity | 15 to 80% |
| Start up Time | 30 minutes after Power "ON" |
| Technical Data | |
| W x H x D | 6.25" x 5.5" x 11" |
| Shipping Dimensions | 17" x 14" x 10" |
| Net Weight | 5.2 lbs. |
| Gross Weight | 12.0 lbs. |
| Test Parameters | |
| Sample Size | Min 0.5 g; Recommended size >1.0g -<10g; Max 50.0 g |
| Measuring Range | 0.01 to 100% |
| Display Resolution | 0.01g |
| Repeatability | 0.50% |
| Temperature | Default 110°C (User selectable settings) |
| Test Time | Sample Dependent |
| Sample Volume | Sample Dependent |
| Safety Precautions | Avoid dust, dampness, and pollution (Degree Class II) |
| Heat Source | Halogen Lamp IR (Infrared) |
| Pan Size | 100 mm |
| Item No. | Product Description | Unit of Measure | Your Cost | Purchase |
|---|---|---|---|---|
|
50 X SAMPLE PANS (DISPOSABLE/ALUMINUM)
8300-14
|
100 mm diameter oil free aluminum Sample Pans for P2MA-50 | Pack of 50 |
$64.29/PK
|
|
|
HALOGEN INFRARED MOISTURE ANALYZER, 110V
8300-10
|
Halogen Infrared Moisture Analyzer P2MA-50 | Each |
$1,636.99/EA
|
|
|
100 X GLASS FIBER PADS
8300-12
|
90mm Diameter Glass Fiber Sample Pads for P2MA-50 | Pack of 100 |
$40.00/PK
|
