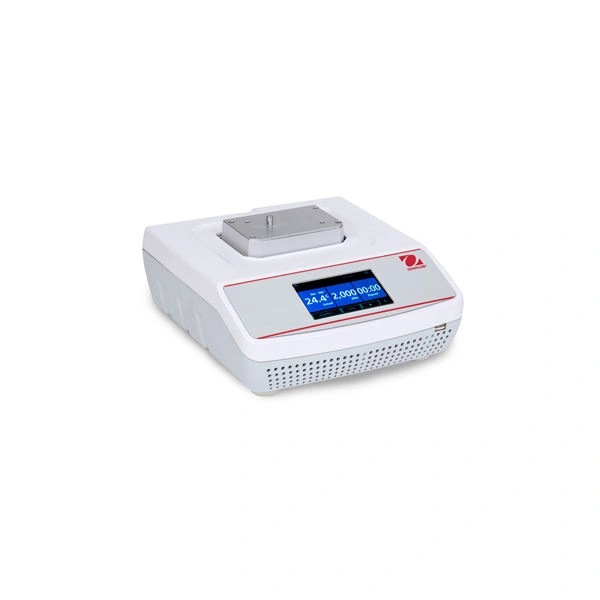

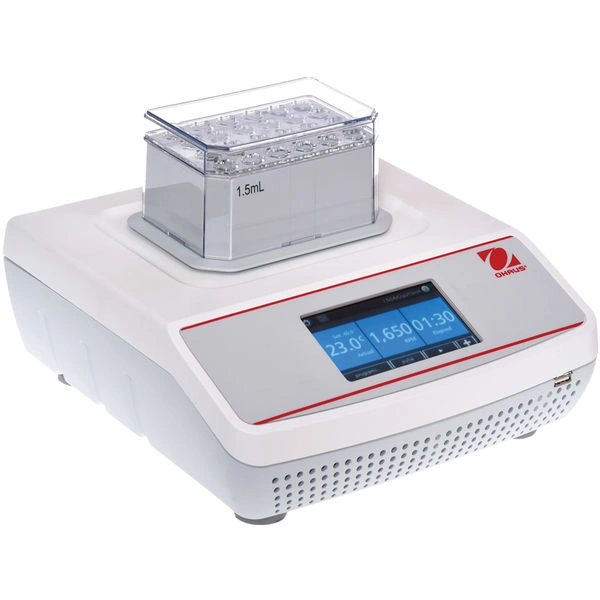

OHAUS Thermal Shakers
OHAUS Thermal Shakers are designed for heating and cooling applications that require consistent and precise high-speed shaking with dependable temperature control from 17°C below ambient (8322-02 / 8322-08) or ambient +4°C (8322-04 / 8322-06) to 100°C (all models). Temperature can be user-calibrated with precision is required. Customized applications with interchangeable blocks to accommodate tubes & microplates. Intuitive touchscreen allows the user to view all steps of the program while monitoring the progress.
Key Features
- Hot top indicator
- Audible alarm
- Maximum temperature limiting function
- Temperature priority function
- Pulse/quick mix mode
- Temperature calibration mode
- Temperature ramp rate function
| Specifications for OHAUS Thermal Shakers | ||||
|---|---|---|---|---|
| 8322-06 | 8322-04 | 8322-08 | 8322-02 | |
| Model | ISTHBLHTS | ISTHBLHTSN | ISTHBLCTS | ISTHBLCTSN |
| Shaker Type | Thermal Shaker | Cooling Thermal Shaker | ||
| Blocks Included | Yes. For 24 x 1.5mL tubes |
No. Blocks sold separately |
Yes. For 24 x 1.5mL tubes |
No. Blocks sold separately |
| Control | Touchscreen | |||
| Motion | Orbital, 0.1" / 3mm | |||
| Speed Range | 300–2,000 rpm (adjusted in 10 rpm increments) | |||
| Speed Accuracy | ±2% | |||
| Temperature Range | Ambient +4° – 100°C (adjusted in 0.1°C increments) |
17°C below Ambient – 100°C (adjusted in 0.1°C increments) |
||
| Temperature Accuracy | ±1°C between 20°C and 45°C; ±2°C above 45°C |
±0.5°C between 20°C and 45°C; ±2°C below 20°C andabove 45°C |
||
| Heating Rate | 5°C/min | |||
| Cooling Rate | Above ambient 2-3°C/min, Below ambient 0.5–1.0°C/min | |||
| Capacity | 1 Thermal Block | |||
| Working Environment | 41°F–95°F, 80%RH non-condensing; 5°C–35°C, 80%RH non-condensing | |||
| Display | 4.3" color touchscreen LCD | |||
| Drive System | Brushless DC Motor | |||
| L x W x H | 10.6" x 10.03" x 5.4" | |||
| Net Weight | 10.8 lb. | |||
| Power | 120V, 1.8A, 50/60Hz | |||
| Power Consumption | 215W | |||
| Item No. | Product Description | Temp. Range | Includes | Unit of Measure | Your Cost | Purchase |
|---|---|---|---|---|---|---|
|
THERMAL SHAKER, HEAT/COOL, ISTHBLCTS, US
8322-08
|
Cooling Thermal Shaker | 17°C below Ambient - 100°C | Shaker + 24 x 1.5mL block | Each |
$3,930.00/EA
|
|
|
SHAKER THERMAL ISTHBLHTSN US
8322-04
|
Thermal Shaker | Ambient +4° - 100°C | Shaker Only | Each |
$2,736.67/EA
|
|
|
THERMAL SHAKER, HEAT, ISTHBLHTS, US
8322-06
|
Thermal Shaker | Ambient +4° - 100°C | Shaker + 24 x 1.5mL block | Each |
$2,954.17/EA
|
|
|
SHAKER THERMAL ISTHBLCTSN US
8322-02
|
Cooling Thermal Shaker | 17°C below Ambient - 100°C | Shaker Only | Each |
$3,541.67/EA
|
