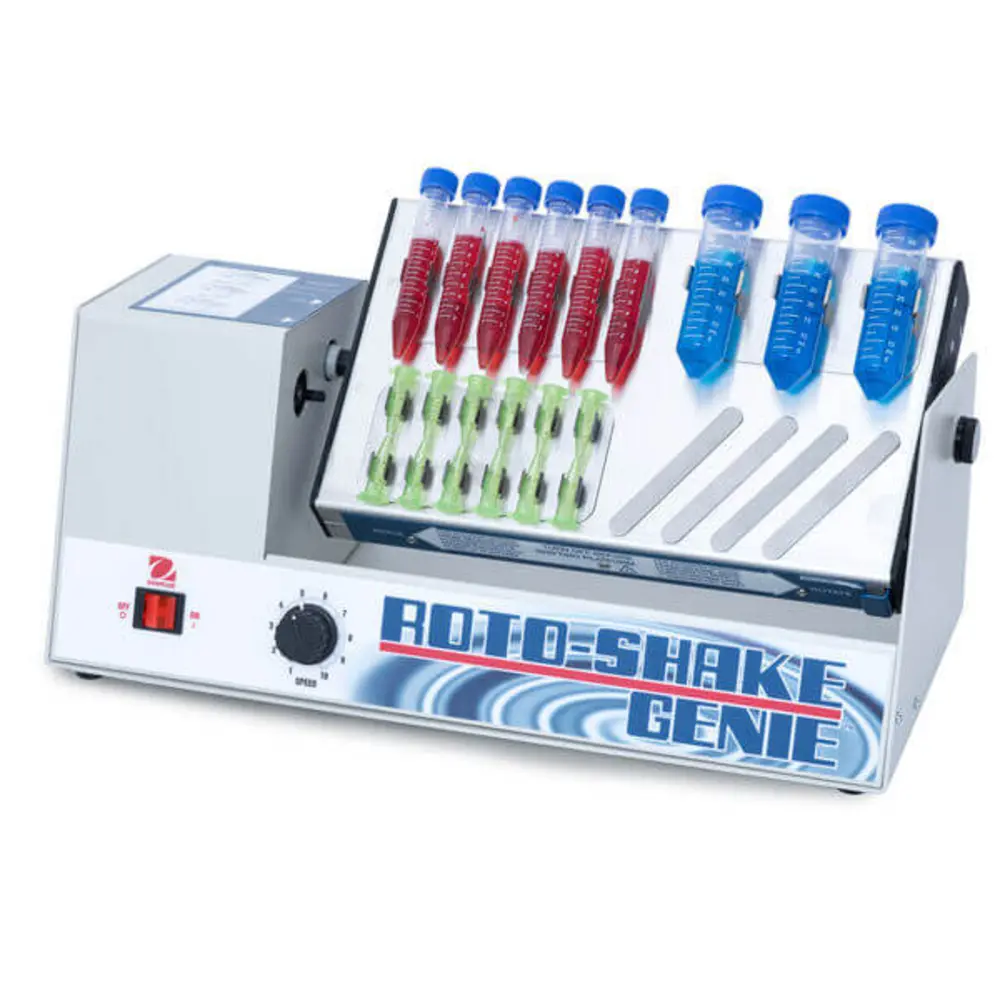

OHAUS Roto-Shake Genie
The OHAUS Roto-Shake Genie™ combines rocking and rotational motion in a compact, versatile laboratory instrument. Optional 3D and horizontal orbital attachments expand its capabilities, allowing the Roto-Shake Genie to function as an orbital shaker.
The magnetic platform and interchangeable clip plates and strips accommodate tubes, flasks, microplates, bags, and odd-shaped vessels. With a 4.5kg/10lb capacity when centered on the axis for rotating or rocking, the Roto-Shake Genie provides flexible sample processing for a wide range of laboratory applications.
Key Features
- Rock and rotate as standard, or with optional accessories for 3D and horizontal orbital shaking
- Magnetic clip plates and strips accommodate tubes, flasks, microplates, bags, and odd-shaped vessels
- Attach mounting accessories at virtually any angle and in different combinations
- Supports 10lb sample loads when centered on the axis for rotating or rocking
- 12” x 12” platform provides a generous working area for sample configurations
- Compact design allows for multiple mixing capabilities in one laboratory instrument
- Analog controls provide straight forward operation
| Specifications for OHAUS Roto-Shake Genie | |
|---|---|
| Control | Analog |
| Accessories Included | Clip Plate for 10-13mm tubes Clip Plate for 15-17mm tubes Clip Plate for 28-30mm tubes 4x Bag Mounting Strips Non-Skid Tray |
| Capacity | 4.5 kg / 10lb |
| Motion | Rock, Rotate, Shake w/ Accessories |
| Rotating Speed | 5 rpm - 35 rpm |
| Rocking Speed | 10 rpm - 70 rpm |
| Tilt Angle | 10° |
| Magnetic Platform LxW | 8" x 13.5" |
| Tray LxW | 12" x 12" |
| Safety Certification | CE |
| Power | 120V, 60Hz |
| LxWxH | 9.9" x 20" x 10.5" |
| Net Weight | 26 lb |
| Working Environment | 0°C – 38°C, 95%RH non-condensing 32°F – 100°F, 95%RH non-condensing |
