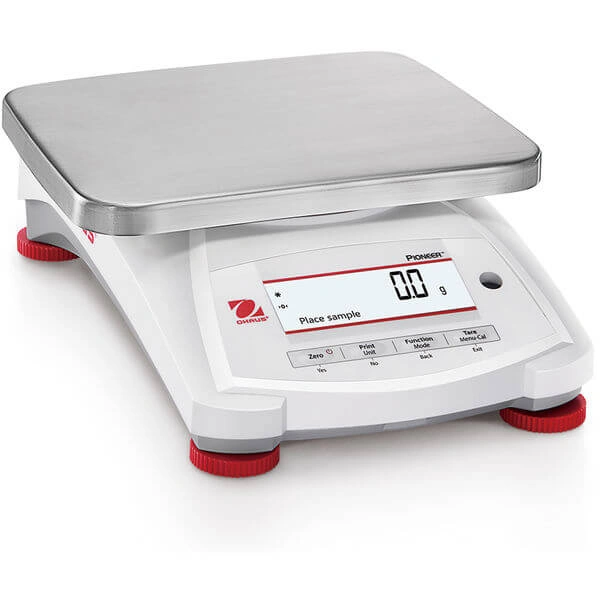

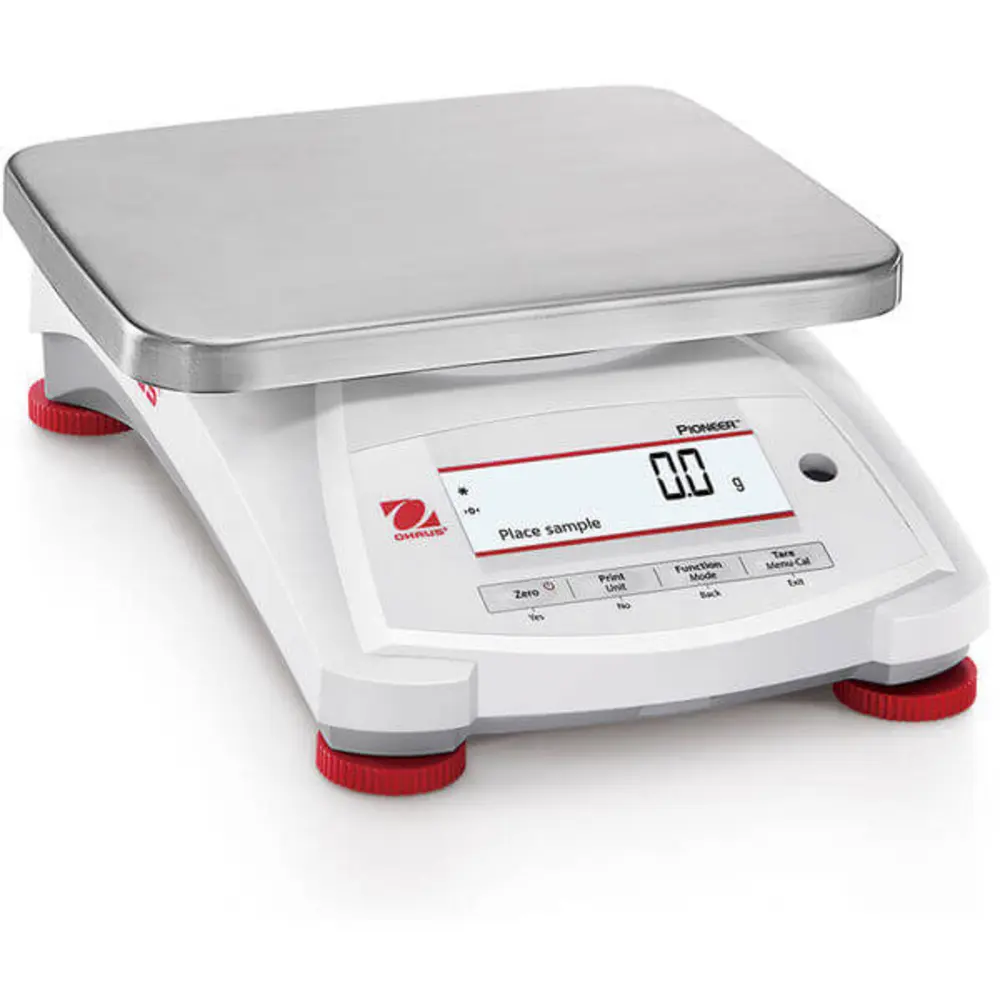

OHAUS Pioneer High-Capacity Precision Balances
OHAUS Pioneer PX High-Capacity Precision Balances combine essential weighing functionality with competitive performance, offering high accuracy and repeatability for applications in laboratory, industrial, and education setting. The PX is affordably priced, intuitively designed for intelligent operation with a second line display for additional information, and USB and RS-232 connectivity for easy communication.
Key Features
- Offers high accuracy and repeatability at an economical price
- Cast metal lower housing, sub-pan, and stainless-steel weighing pan provides durable construction for versatile long-term use
- Real-time clock (RTC) keeps accurate time, even during power loss
- GLP/GMP data output capability allows for sample name, project, user and balance IDs to be recorded, helping to meet traceability and compliance requirements
- Password protection reduces potential risk of accidental and unauthorized changes in balance setting such as date and time, external calibration, print settings, etc.
- Six standard weighing modes: Weighing, Parts Counting, Percent Weighing, Dynamic Weighing, Density Determination, and Formulation
- Equipped with USB and RS232 connectivity ports for easy communication with PC, impact printer, or Zebra label printer
- Static removal bar constructed of permanent static electric dissipative ABS provides a convenient grounding location
- Large viewing angle with bright backlit LCD display. Two line display provides additional information or guidance prompts to the user
- Four quick keys enable easy operation of multiple weighing modes
| Specifications for OHAUS Pioneer PX High-Capacity Precision Balances | ||
|---|---|---|
| 8238-02 | 8238-03 | |
| Model | PX12001 | PX12001/E |
| Maximum Capacity | 12,000 g | |
| Readability | 0.1 g | |
| Pan Size | 248 mm x 193 mm | |
| Internal Calibration | InCal™ - Semi Automatic | Not Applicable |
| Draftshield | — | |
| Auto Door | Not Applicable | |
| Auxiliary Display Model | Available as an Accessory | |
| Battery Life | Not Applicable | |
| Communication | USB; RS232 | |
| Dimensions (LxHxW) | 321 mm x 101 mm x 209 mm (LxHxW) | |
| Display | 2-Line LCD with Backlight | |
| Legal for Trade | Not Applicable | |
| Linearity ± | 0.2 g | |
| Minimum Weight (USP, 0.1%, typical) |
160 g | |
| Net Weight | 7.7 lb (3.5 kg) | |
| Pan Construction | Stainless Steel | |
| Power | AC Adapter (Included) | |
| Repeatability, typical | 0.1 g | |
| Stabilization Time | 1 s | |
| Tare Range | To capacity by subtraction | |
| Units of Measurement | Singapore Tael; Pennyweight; Ounce Troy; Kilogram; Grain; Tical; Custom; Newton; Momme; Taiwan Tael; Baht; Gram; Hong Kong Tael; Pound; Tola; Mesghal; Ounce; Carat |
|
| Working Environment | Operability guaranteed between 5°C and 40°C; 10°C – 30°C, 80%RH, non-condensing | |
| Item No. | Capacity | Calibration | Model No. | Readability | Unit of Measure | Your Cost | Purchase |
|---|---|---|---|---|---|---|---|
|
PRECISION BALANCE PX12001/E
8238-03
|
12,000 g | External | PX12001/E | 0.1 g | Each |
$1,737.40
|
|
|
PRECISION BALANCE PX12001
8238-02
|
12,000 g | Internal | PX12001 | 0.1 g | Each |
$2,076.44
|
