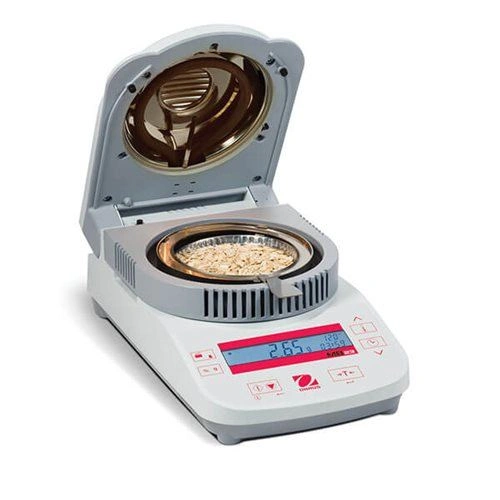

OHAUS MB23 Moisture Analyzer

The OHAUS MB23 Moisture Analyzer provides precise moisture content determination at an unbeatable value. With a large backlit LCD display, standard RS232 port, 110g capacity with a readability of 0.01g/0.1% and a non-glass infrared heating element, the MB23 offers moisture analysis for any budget.

Key Features

  • Flexible Performance—accurate results at either 0.1% or 10 mg readability. The MB23 is ideal for textiles, wastewater, ceramics, food and other applications that require IR heating elements and measurements to 0.1%.
  • Simple to Operate—Set up and operation is extremely easy. Just press and hold the temperature or time buttons to set drying parameters, add your sample and begin the test process. This makes the MB23 ideal for routine tasks performed by operators of all skill levels.
  • Compact, Easy-to-Clean Design—The compact footprint (17 x 13 x 28 cm) of the OHAUS MB23 is designed to take up less space. The easy-to-clean heating chamber is ideal for frequent use and inexpensive maintenance.
  • Product Safety: IEC/EN 61010-1, IEC/EN 61010-2-010
  • Electromagnetic Compatibility: IEC/EN 61326-1 Class B, Basic environments


Specifications for OHAUS MB23 Moisture Analyzers
Capacity110 g
Repeatability (Std Dev) (g)0.3% (3g sample)
0.2% (10g sample)
Readability0.1% / 0.01g
Sample Size3g to 20g typical, 0.5g min
InterfaceBidirectional RS-232
Timer1 - 99 minutes, 30-second increments to 60 minutes
Heating TechnologyInfrared (no glass)
Temperature Range50°C to 160°C in 5° increments
Power100 to 240 VAC, 50/60 Hz
Tare RangeTo capacity by subtraction
Operating Temperature Range5° to 40°C
Display TypeCustom backlit LCD
Displays% moisture or % solids or weight (g), temperature, time
Pan Diameter90 mm
W x H x D17 x 13 x 28 cm
Net Weight2.3 kg
Shipping Weight3.9 kg
Sample Pans (Qty 50)Standard
In Use CoverStandard
Modes are CE, CSA/UL, and FCC approved
Filter
Item No. Alt. Part No. Capacity Readability Temp. Range Unit of Measure Your Cost Purchase
MB Series Moisture Analyzers
3013-07
EF4759A 110g 0.1%/0.001 g 50° to 160°C (5°C increments) Each
Shown in cart
Add to Cart This item is not currently stocked. Allow 2-3 weeks. Please contact us if you'd like us to keep stock in the future. In Stock
