OHAUS Guardian 5000 Synthesis Kits

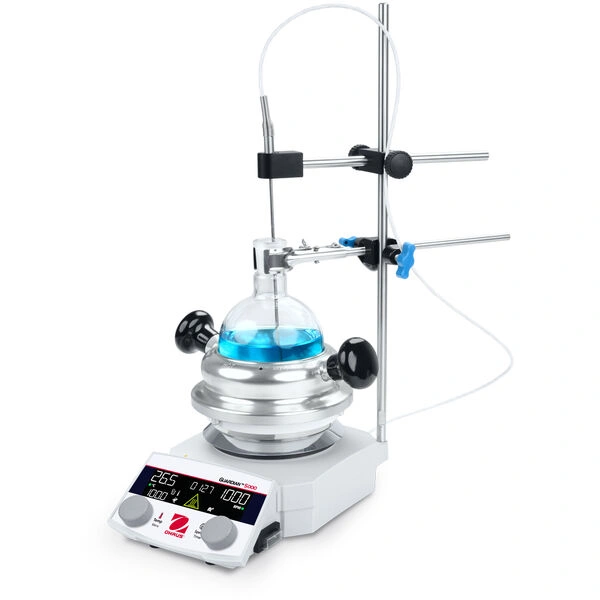

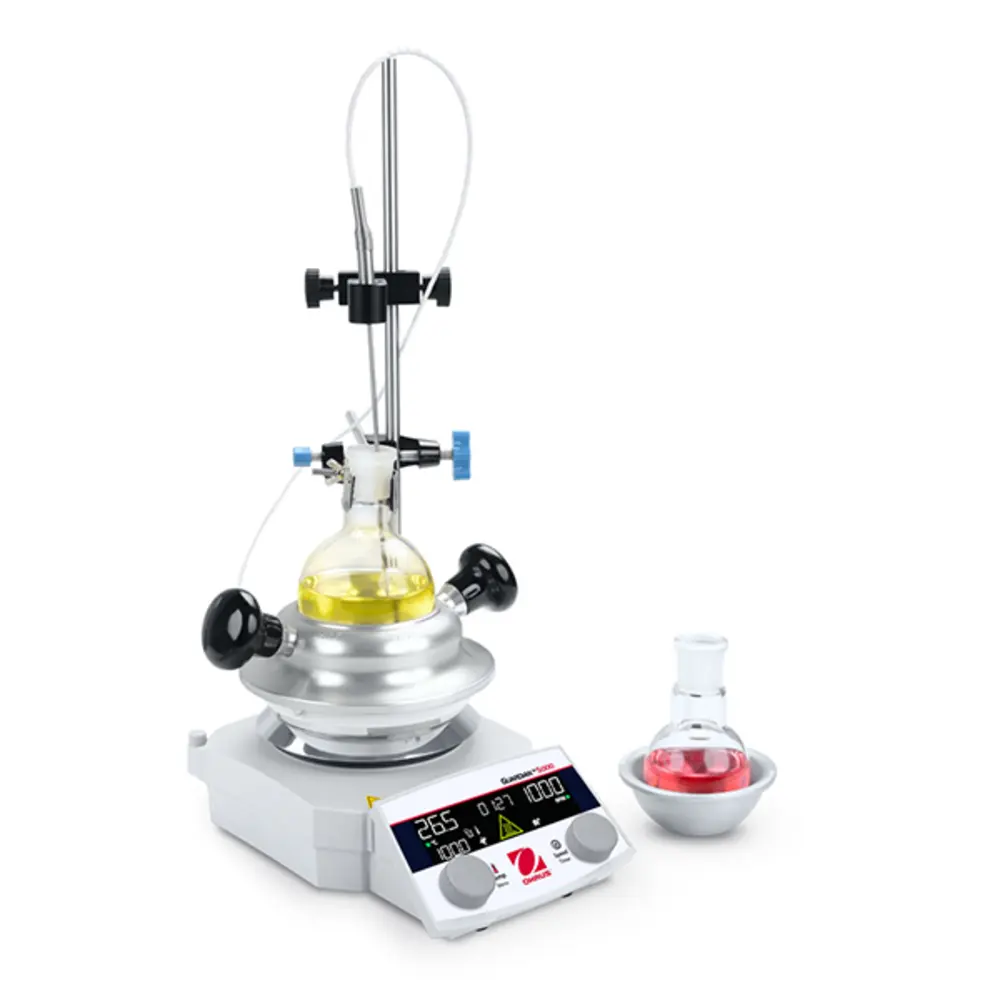

The OHAUS Guardian™ 5000 Synthesis Kits are designed for safe, clean heating with standard round-bottom flasks, making it easier for chemists to assemble, replace, and maintain experimental setups. The range includes 3 basic kits, each featuring a Guardian 5000 hotplate stirrer and a base block compatible with 250mL, 500mL, or 1000mL flasks. Additionally, optional insert blocks accommodate smaller flasks down to 25mL (sold separately).
Key Features
- As a safer alternative to oil bath, the synthesis kits eliminate the risks of oil fires, spills, and toxic fume emissions
- Base blocks include 2 heat-resistant handles for safe handling when hot
- Compared to traditional heating mantles, the synthesis kits provide precise, uniform heating
- Low-well design prevents glassware cracking or jamming and ensures excellent reaction visibility
- As flask sizes vary, the compact insert blocks help users save costs by avoiding multiple block bases
- Thanks to high-precision machining, inserting and removing blocks is as easy as building blocks
- Blocks are durable and easy-to-clean with a chemical and solvent-resistant anodized finish
- Rod stand, probe & holder, and flask clamps are all included in package for immediate installation
- Capability to install a second rod and additional clamps for more sophisticated apparatus setup
| Specifications for OHAUS Guardian 5000 Synthesis Kit | |||
|---|---|---|---|
| 8338-02 | 8338-04 | 8338-06 | |
| Model | E-G52HSRDA -K2A | E-G52HSRDA -K2A | E-G52HSRDA -K2A |
| Flask Capacity of Block Base within Kit | 250 mL | 500 mL | 1000 mL |
| Outer Diameter of Block Base w/ Handles | 225 mm | 245 mm | 265 mm |
| Outer Diameter of Block Base w/o Handles | 121.6 mm | 141.4 mm | 162.3 mm |
| Max. Flask Diameter | 85.4 mm | 54.6 mm | 65.5 mm |
| Height of Block Base | 44.2 mm | 54.6 mm | 65.5 mm |
| Depth of Block Recess | 36.8 mm | 46.7 mm | 62.2 mm |
| Flask Capacity of Optional Block Inserts (sold separately) |
25, 50, 100 mL | 25, 50, 100, 250 mL | 25, 50, 100, 250, 500 mL |
| Block Material | 6082 T651 Aluminum Alloy | ||
| Block Weight | 1.51 kg | 2.05 kg | 2.22 kg |
| Block Working Temperature Limit | 300°C | ||
| Temp. Probe w/ Kit | 30500590 Stainless Steel Probe, PT1000 (Class A), -40°C – 400°C |
||
| Probe Holder w/ Kit | 30973298 (a stand rod, a double clamp, and a probe holding arm) |
||
| Flask Clamp w/ Kit | Stainless-Steel, grip range: 9.5–50mm, arm length:19 cm, total length: 28cm (and an attached double clamp) |
||
| Temp. Range | Ambient + 5°C – 360°C | ||
| Temp. Increment & Readability | 0.5°C | ||
| Heating Power | 600W at 120V | ||
| Speed Range | 50–1800 rpm | ||
| Electrical (50/60Hz) | 100–120V, 8A | ||
| Item No. | Capacity | Unit of Measure | Your Cost | Purchase |
|---|---|---|---|---|
|
SYNTHESIS KIT2A 250ML E-G52HSRDA 120V
8338-02
|
250 mL | Each |
$1,444.44/EA
|
|
|
SYNTHESIS KIT2B 500ML E-G52HSRDA 120V
8338-04
|
500 mL | Each |
$1,399.31/EA
|
|
|
SYNTHESIS KIT2C 1000ML E-G52HSRDA 120V
8338-06
|
1000 mL | Each |
$1,489.58/EA
|
