OHAUS Guardian 3000 Hotplate Stirrers

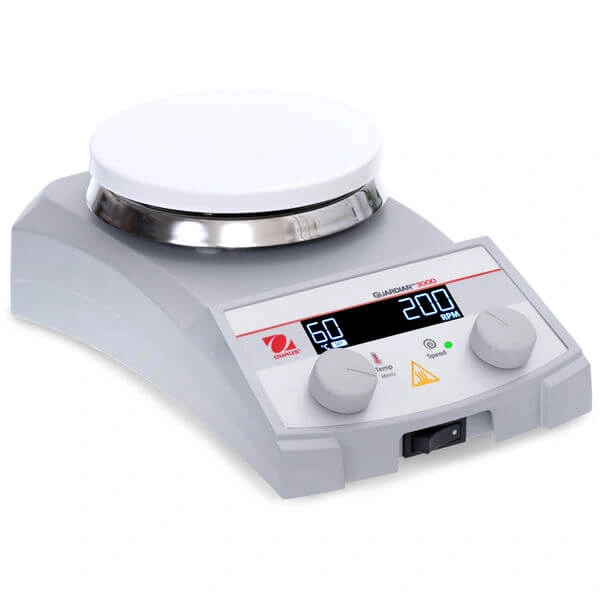

OHAUS Guardian 3000 Hotplate Stirrers are designed for economical heating and stirring in all laboratory settings. The bright LCD display includes easy-to-read temperature and speed settings, intuitive icons and a prominent hot top indicator that lights up when the heater is above 40°C. Select from three plate sizes to suit your application. All models can be used with the optional temperature probe for precise temperature control of the sample.
Key Features
- SafetyHeat™, and industry-leading early detection system, uses two independent safety controls to monitor the electronics and stop heating before an overtemperature condition occurs
- Rugged metal housing has a spill-resistant design for long life in the lab under harsh conditions
- Smooth, chemical-resistant ceramic top makes for easy clean ups
- Easy-to-reach rocker switch to power on/off the unit is protected from accidental spills by enclosure overhang
| Specifications for OHAUS Guardian 3000 Hotplate Stirrers | |||
|---|---|---|---|
| 8337-06 8337-08 |
8337-02 8337-12 |
8337-04 8337-10 |
|
| Model | E-G31HSRDS | E-G31HS04C | E-G31HS07C |
| Kit Model* | E-G31HSRDS -K1 | E-G31HS04C -K1 | E-G31HS07C -K1 |
| Function | Heating and Stirring | ||
| Top Plate Size | 5.3" Diameter | 4" x 4" | 7" x 7" |
| Top Plate Material | Ceramic Coated Stainless Steel |
Ceramic | |
| Control | Digital | ||
| Display | 75 x 20 mm White Character LCD | ||
| Temp Range | Ambient + 5°C – 380°C | Ambient + 5°C – 500°C | |
| Set Temp Increments | 1°C | ||
| Temp Readability | 1°C | ||
| Temp Stability | ±3% Plate, below 100°C ±2°C; and ±2% Probe, below 100°C ±2°C |
||
| Temp Calibration (SPC) Set Point |
1 point for Plate and 1 point for Probe | ||
| Probe Connection | PT1000 (Class A) | ||
| Heating Power | 500W at 120V | 1000W at 120V | |
| Speed Range | 80 – 1600 rpm | ||
| Speed Stability | ±2% | ||
| Stirring Capacity | 15L H2O | ||
| IP Rating | IP21 | ||
| Housing | Painted Aluminum | ||
| L x W x H | 10.4" x 6.4" x 4.0" | 10.4" x 6.4" x 4.3" | 12.5" x 8.8" x 4.4" |
| Working Environment | 41°F–104°F (5°C–40°C), 80%RH, non-condensing | ||
| Weight | 5.5 lb | 8.6 lb | |
| Power Input | 550W | 1050W | |
| Electrical (50/60Hz) | 100–120V, 5A | 120V, 10A | |

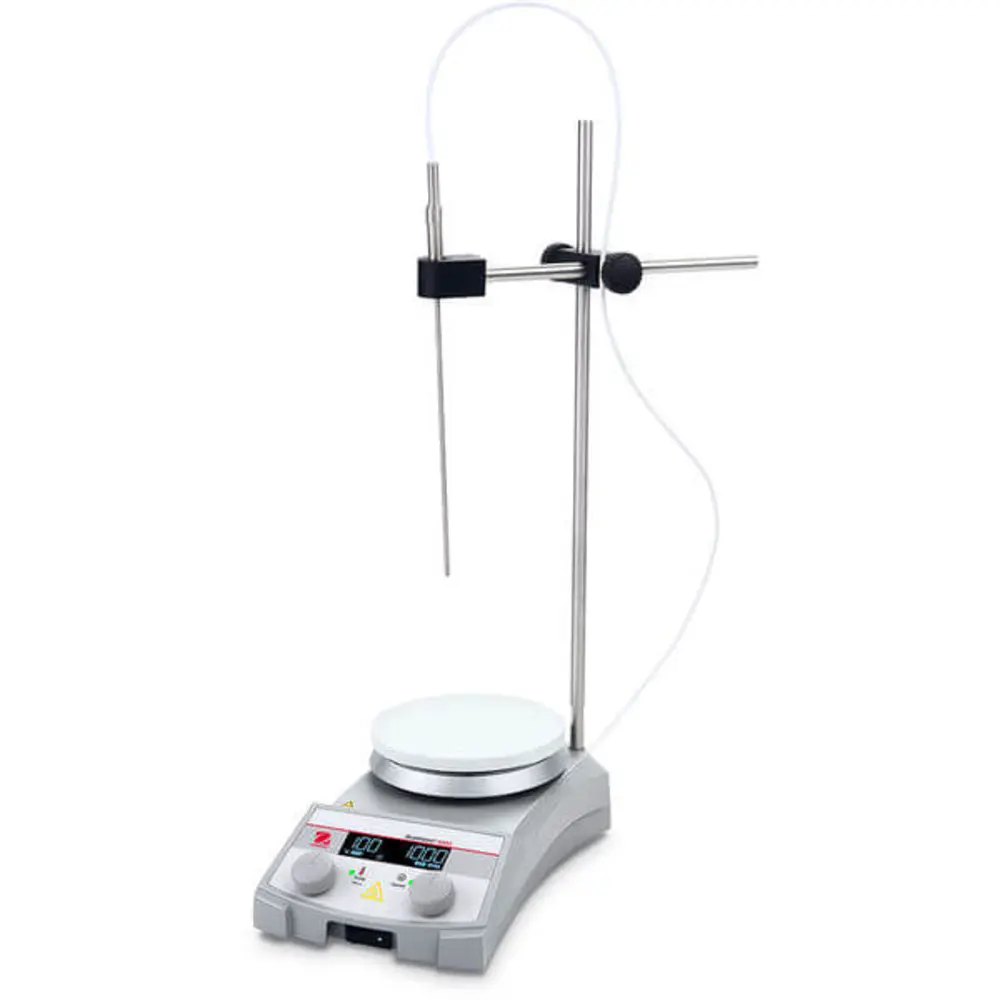

| *Kit-1 (K1) has the Temperature Probe 30500590 and Probe Holder Kit 30973298 included in package | |||
| Item No. | Product Description | Model No. | Speed Range | Temp. Range | Top Plate Material | Top Plate Size | Unit of Measure | Your Cost | Purchase |
|---|---|---|---|---|---|---|---|---|---|
|
HOTPLATE-STIRRER E-G31HS04C 115V AM
8337-02
|
Hot Plate Stirrer | E-G31HS04C | 80 - 1600 rpm | Ambient + 5°C - 500°C | Ceramic | 4" x 4" | Each |
$502.85/EA
|
|
|
HOTPLATE-STIRRER E-G31HS04C 120V AM -K1
8337-12
|
Hot Plate Stirrer Kit | E-G31HS04C -K1 | 80 - 1600 rpm | Ambient + 5°C - 500°C | Ceramic | 4" x 4" | Each |
$667.15/EA
|
|
|
HOTPLATE-STIRRER E-G31HSRDS 120V AM -K1
8337-08
|
Hot Plate Stirrer Kit | E-G31HSRDS -K1 | 80 - 1600 rpm | Ambient + 5°C - 380°C | Ceramic Coated Stainless Steel | 5.3" Diameter | Each |
$667.15/EA
|
|
|
HOTPLATE-STIRRER E-G31HS07C 120V AM -K1
8337-10
|
Hot Plate Stirrer Kit | E-G31HS07C -K1 | 80 - 1600 rpm | Ambient + 5°C - 500°C | Ceramic | 7" x 7" | Each |
$723.13/EA
|
|
|
HOTPLATE-STIRRER E-G31HS07C 115V AM
8337-04
|
Hot Plate Stirrer | E-G31HS07C | 80 - 1600 rpm | Ambient + 5°C - 500°C | Ceramic | 7" x 7" | Each |
$563.33/EA
|
|
|
HOTPLATE-STIRRER E-G31HSRDS 115V AM
8337-06
|
Hot Plate Stirrer | E-G31HSRDS | 80 - 1600 rpm | Ambient + 5°C - 380°C | Ceramic Coated Stainless Steel | 5.3" Diameter | Each |
$502.85/EA
|
