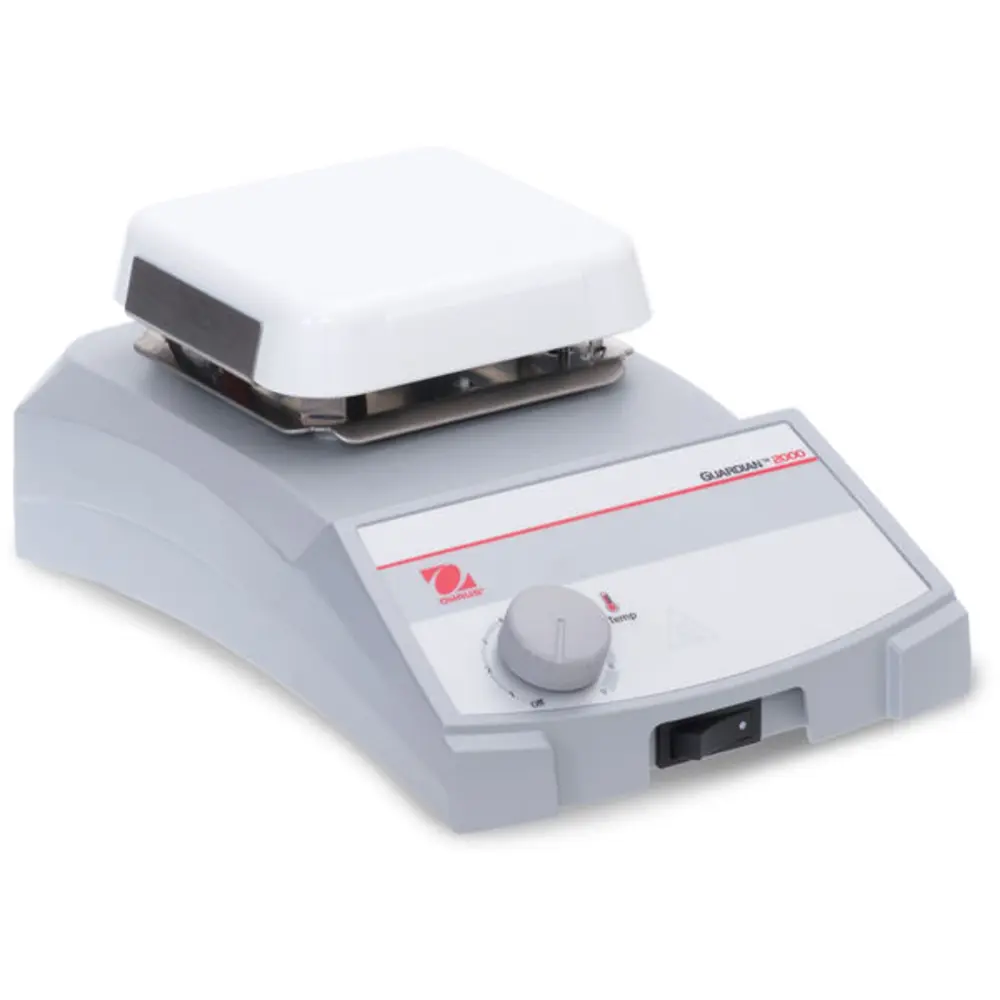

OHAUS Guardian 2000 Hotplates
The dependable OHAUS Guardian 2000 Hotplates are ideal and other lab environments that require affordable, everyday fast heating. All three sizes offer simple knob control to easily adjust the heating and stirring functions. The durable house includes a built-in support rod holder which accepts the optional support rod.
Key Features
- Fast heating at an economical price
- Safely heat up to 500°C with easy-to-use knob control
- Rugged metal housing has a spill resistant design for long life in the lab under harsh conditions
- Smooth, chemical-resistant ceramic top plate is perfect for easy clean up
- Hot top indicator light illuminates when heater is above 40°C, keeping end user safe during all heating applications
| Specifications for OHAUS Guardian 2000 Hotplates | |||
|---|---|---|---|
| 8335-02 | 8335-04 | 8335-06 | |
| Model | E-G21HP04C | E-G21HP07C | E-G21HPRDS |
| Function | Heating | ||
| Top Plate Size | 4" x 4" | 7" x 7" | 5.3" Diameter |
| Temperature Range | 70°C – 500°C | 50°C – 380°C | |
| Control | Analog | ||
| Capacity | 15L | ||
| Top Plate Material | Ceramic | Ceramic Coated Stainless Steel | |
| H x L x W | 4.3" x 10.4" x 6.4" | 4.4" x 12.5" x 8.8" | 4.0" x 10.4" x 6.4" |
| Weight | 4.0 lb | 7.1 lb | 4.0 lb |
| Power | 100V – 120V ~5A 50/60Hz | 100V–120V ~10A 50/60Hz | 100V–120V ~5A 50/60Hz |
| Power Consumption |
505W | 1005W | 535W |
| Working Environment |
41°F – 104°F (5°C – 40°C), 80% RH non-condensing | ||
| Item No. | Model No. | Temp. Range | Top Plate Material | Top Plate Size | Unit of Measure | Your Cost | Purchase |
|---|---|---|---|---|---|---|---|
|
HOTPLATE E-G21HP04C 115V AM
8335-02
|
E-G21HP04C | 70°C - 500°C | Ceramic | 4" x 4" | Each |
$268.13/EA
|
|
|
HOTPLATE E-G21HP07C 115V AM
8335-04
|
E-G21HP07C | 70°C - 500°C | Ceramic | 7" x 7" | Each |
$299.72/EA
|
|
|
HOTPLATE E-G21HPRDS 115V AM
8335-06
|
E-G21HPRDS | 50°C - 380°C | Ceramic Coated Stainless Steel | 5.3" Diameter | Each |
$299.72/EA
|
