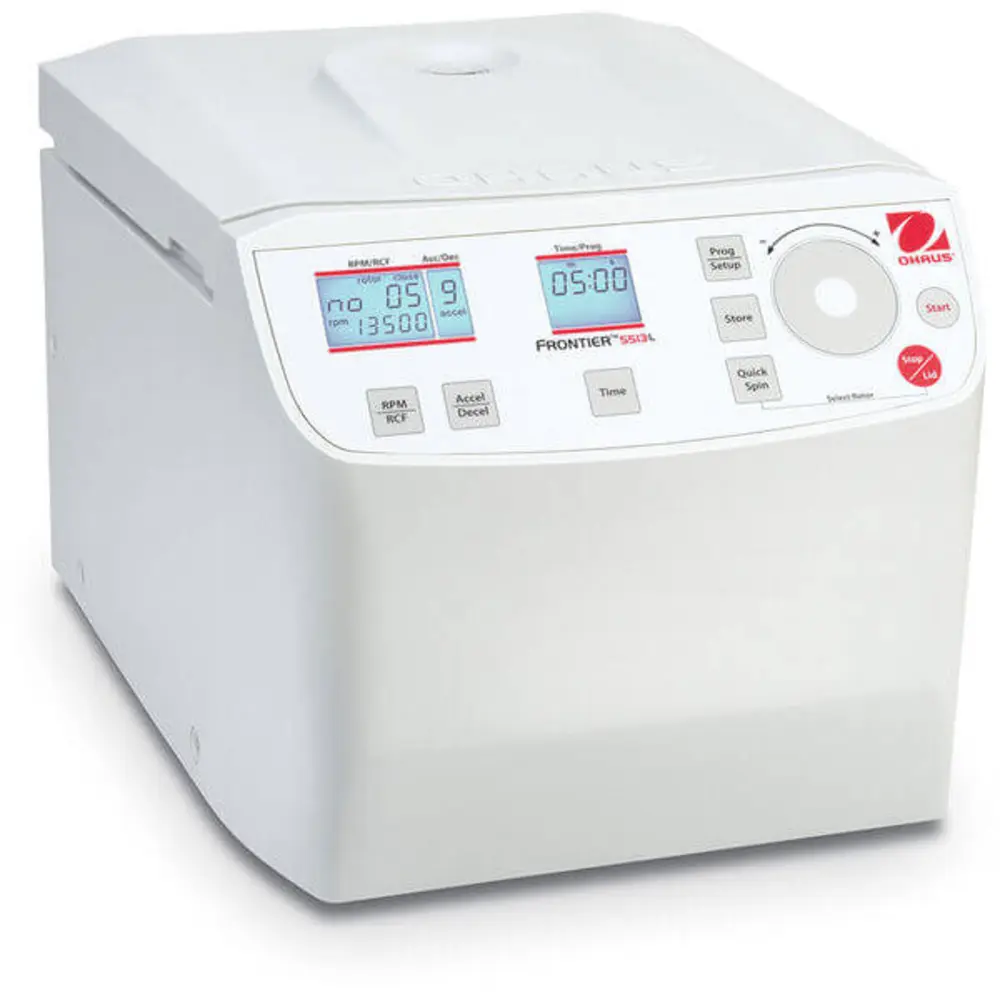

OHAUS Frontier 5513L High-Speed Micro Centrifuge

Item No.:
8333-08
OEM Number:
8333-08
Product Description:
Centrifuge + Rotor (Angle 18 x 1.5/2.0 ml)
Model No.:
FC5513L + R06
Unit of Measure:
Each
Your Cost:
$1,690.49/EA
On Order In Stock Add to Cart

The OHAUS Frontier 5513L High-Speed Micro Centrifuge is a space-saving micro centrifuge capable of spinning 18 x 1.5/2.0mL microtubes and generating forces up to 15994 x g for basic molecular biology applications like DNA/RNA purification and extraction. Engineered with convenient operation in mind, the FC5513L features a uniquely designed splash-proof front panel with touch-wheel control for quick and easy adjustment.

Key Features

  • Easy-to-use touch-wheel interface for parameter adjustments
  • Convenient interface shows both set and actual parameters
  • One-touch toggling between RPM/RCF, ACC/Dec
  • Crisp display on a double-line LCD display with light blue backlight
  • True splash-proof panel protects the centrifuge from accidental spilling
  • Maintenance-free induction motor produces maximum G-force of 15994 x g and 14000 rpm
  • 10 acceleration/deceleration settings
  • 99 memory sets to quickly store and recall commonly used parameters
  • Rotor imbalance sensing systems stop the unit when it detects an imbalanced load
  • Mechanical lid-locking system prevents centrifuge from opening during operation


Specifications for Frontier 5513L High-Speed Micro Centrifuge
FC5513L
Speed Range 200 rpm - 14000 rpm; 10 rpm/increments
Max RCF 15994 x g; 10 x g / increments
Max Capacity   (Rotor) Angle Rotor: 18 x 1.5/2.0mL
Temp Range Air Cooled
Refrigerant N/A
Running Time Quick Spin, 10 sec to 99 hr 59 min, or continuous
Noise Level ≤57 + 2 dB(A)
Acc/Dec Levels 10/10
Allowable Density at Max Speed 1.5 g/mL
Allowable Kinetic Energy 1429 Nm
AC Power 120 V/50-60Hz
Voltage Fluctuation ±10%
Current Consumption 1.7A
Power Consumption 130W
W x D x H 10.9" x 13.8" x 9.1"
Net Weight (w/o rotor) 30.9 lb
Ambient Conditions
     (EN/IEC 61010-1)		 Environment For indoor use only
Altitude Use up to an altitude of 2000m
Ambient Temp 5°C up to 35°C
Max. Relative
Humidity		 Max. relative humidity 80% for temps up to 31°C;
Decreasing linearity to 50% relative humidity up to 35°C
EMC EN/IEC 61326-1 Class B emissions, Basic Immunity;
FCC Class B emissions
