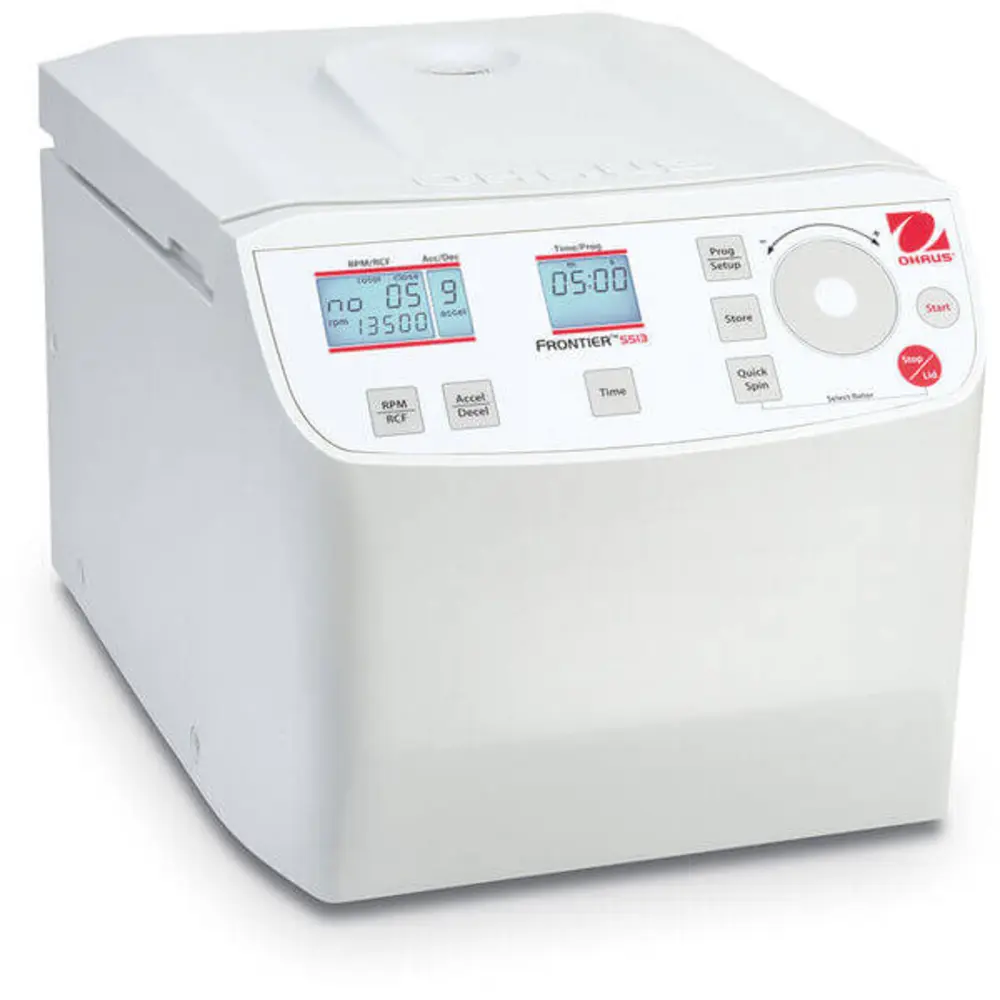

OHAUS Frontier 5513/5513R Benchtop Micro Centrifuges
OHAUS Frontier 5513/5513R Benchtop Micro Centrifuges, as high-speed centrifuges, are capable of generating approximately 17,000 x g. With refrigeration capabilities (FC5513R), optional rotors are designed for clinical, industrial, and research applications. Engineered with convenient operation in mind, FC5513 and FC5513R feature a uniquely designed splash-proof front panel with touch-wheel control on an intuitive interface. The compact design saves valuable bench space in the lab.
Key Features
- Easy-to-use touch-wheel interface for parameter adjustments
- Convenient interface shows both set and actual parameters
- One-touch toggling between RPM/RCF, Acc/Dec
- Crisp display on double-line LCD display with light blue backlight
- Speeds up to 13,500 rpm in less than 15 seconds with 24 x 1.5/2.0 mL rotor
- 10 acceleration/deceleration settings
- 99 memory sets to quickly store and recall commonly used parameters
- FC5513R model has refrigeration capabilities from 40°C to -20°C
- Sealed T Ü V certified rotors to safeguard operators from harmful aerosols
- Rotor imbalance sensing systems stops the unit when it detects and imbalanced load
- Lid-locking system prevents centrifuge from opening during operation (FC5513R)
| Specifications for Frontier 5513 & 5513R | |||
|---|---|---|---|
| FC5513 | FC5513R | ||
| Speed Range | 200 rpm – 13500 rpm; 10 rpm/increments |
200 rpm – 14500 rpm; 10 rpm/increments |
|
| Maximum RCF | 17317 x g; 10 x g/increments |
17317 x g; 10 x g/increments |
|
| Maximum Capacity (Rotor) | Angle Rotor: 24 x 1.5/2.0mL | ||
| Temp. Range | Air Cooled | -20°C to 40°C, 1°C/increments |
|
| Refrigerant | N/A | R290 (Propane) | |
| Running Time | Quick Spin, 10 sec to 99 hr 59 min, or continuous | ||
| Noise Level | ≤60 + 2dB(A) | ≤56 + 2dB(A) | |
| Acc/Dec Levels | 10/10 | ||
| Allowable Density at Max Speed | 1.2 g/mL | ||
| Allowable Kinetic Energy | 2129 Nm | 2266 Nm | |
| AC Power | 120 V/50-60Hz | ||
| Voltage Fluctuation | ±10% | ||
| Current Consumption | 1.9A | ||
| Power Consumption | 170W | 320W | |
| W x D x H | 10.9" x 13.8" x 9.1" | 11.0" x 21.9" x 11.3" | |
| Net Weight (w/o rotor) | 30.9 lb | 73 lb | |
| Ambient Conditions (En/IEC 61010-1) |
Environment | For indoor use only | |
| Altitude | Use up to an altitude of 2000m | ||
| Ambient Temp | 5°C up to 35°C | ||
| Max. Relative Humidity |
Max. relative humidity 80% for temperatures up to 31°C; Decreasing linearly to 50% relative humidity up to 35°C |
||
| EMC | EN/IEC 61326-1 Class B emissions, Basic Immunity; FCC Class B emissions |
||
| Item No. | Product Description | Model No. | Unit of Measure | Your Cost | Purchase |
|---|---|---|---|---|---|
|
CENTRIFUGE MICRO 120V FC5513
8333-04
|
Centrifuge only | FC5513 | Each |
$2,073.19/EA
|
|
|
CENTRIFUGE MICRO 120V FC5513+R02
8333-06
|
Centrifuge + Rotor (Angle 24 x 1.5/2.0 ml BIOSEALS) | FC5513 + R02 | Each |
$2,247.36/EA
|
|
|
CENTRIFUGE MICRO 120V FC5513R
8333-10
|
Refrigerated Centrifuge Only | FC5513R | Each |
$4,713.96/EA
|
