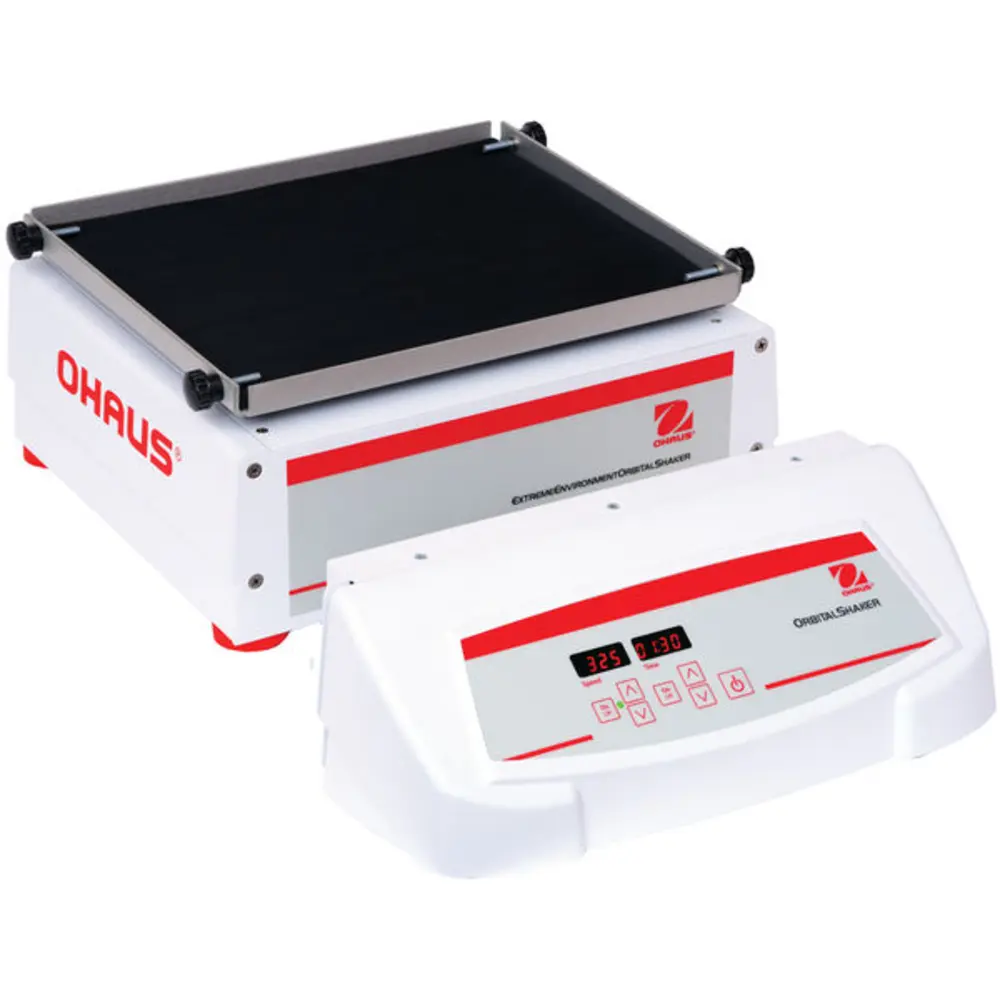

OHAUS Extreme Environment Shakers
OHAUS Extreme Environment Shakers are designed for use in applications that require CO2 and humidity for optimal cell growth. The remote controller magnetically attaches to the outside of most incubators or easily sits on the lab bench. The shaker base is placed inside the incubator and connected to the touchpad controller with a 170 cm cable allowing simple external control of speed and time settings. This shaker features an IP65-rated motor.
Applications: Cell cultures, solubility studies, extraction procedures, bacteria & yeast cultures and suspensions, staining/destaining, immunoassays, protein studies, blotting techniques.
Key Features
- Rely on this orbital shaker’s unique construction to deliver exceptional speed control, accuracy and durability under the most extreme environmental conditions
- Best-in-class load capacity maximizes efficiency in the incubator.
- Customizable for various applications with over 50 accessories (sold separately)
- Accu-Drive shaking system ensures speed accuracy and the triple eccentric drive provides smooth, stable shaking motion throughout the entire speed range
- Independent LED displays for speed/time allow the operator to view both settings simultaneously
- Detachable 3-wire cord and plug (included)
- RS232 interface provides two-way communication for data logging and unit control
- Construction: cold rolled steel (CRS) and stainless steel, external control module, thin ribbon cable (5.5 feet) easily passes underneath an incubator door or via incubator’s utility port
- Built-in tray with non-slip rubber mat (included)
| Specifications for OHAUS Extreme Environmental Shaker | |
|---|---|
| Model | SHEX1619DG |
| Control | Digital |
| Motion | Orbital, 19 mm |
| Speed Range | 15 rpm – 500 rpm |
| Speed Accuracy | ±1 rpm, above 100 rpm ±1% of set speed |
| Timer | 1 second – 160 hours |
| Capacity | 16 kg |
| Working Environment | Temperature (Shaker): -10° to 60°C (14° to 140°F), maximum 100% relative humidity, condensing; Temperature (Controller): -10° to 50°C (14° to 122°F), maximum 80% relative humidity, non-condensing |
| Drive System | Brushless DC Motor; Triple Eccentric |
| Communication | RS232 (included) |
| Tray L x W | 11" x 13" |
| Tray Construction | Aluminum |
| H x L x W | 5.9" x 11.6" x 14" |
| Net Weight | 48.1 lb |
| Power | 120V, 0.5A, 50/60Hz |
| Power Consumption | 30W |
