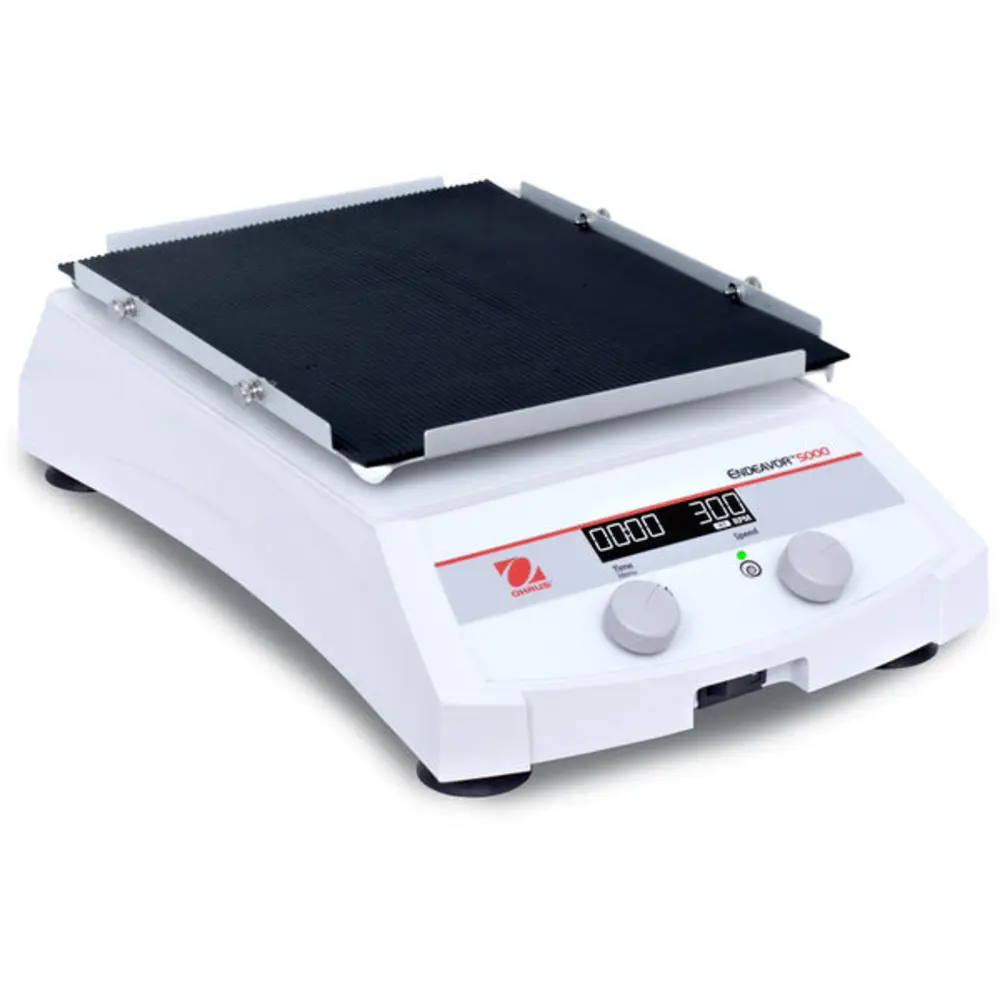

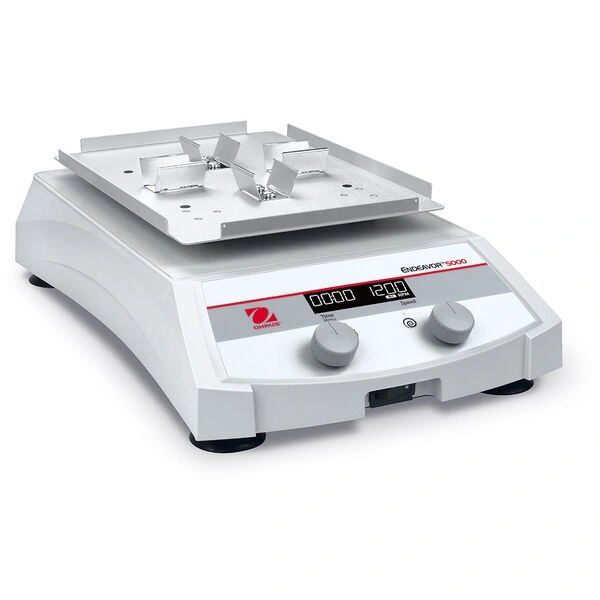

OHAUS Endeavor 5000 Light Duty Orbital Shakers
OHAUS Endeavor™ 5000 Light Duty Orbital Shakers are available in 3 models: 3mm orbit, 20 mm orbit, or dedicated microplate model. All models can be used in incubators and cold rooms. Stable, accurate, long-term shaking is ensured with the triple eccentric drive and maintenance-free brushless DC motor. Integrated overload and unbalanced detection to protect samples.
Applications: Microbiology, molecular biology, ELISA Assays, cell cultures, immunoassays, protein studies, bacterial and yeast cultures, staining/destaining, blotting techniques, DNA studies, solubility studies, environmental and food sciences, chemistry, general mixing.
Key Features
- Simple on-board menu to set, store, and recall multi-step programs
- Remote function permits PC control and data transfer
- Durable chemical-resistant polymer housing,
- Sturdy easy-to-clean aluminum standard tray with attachment points for accessories
- IP21 ingress Protection
- Robust triple eccentric drive for stable shaking
- Visual and audio alarm when timer counts down to zero or an error occurs
- Small footprint to save bench space
- Advanced microprocessor control slowly ramps the shaker tray up to the desired speed and avoids splashing
- Bright, backlit LCD display for speed and time, timer will count up elapsed time or when set, timer will count down and shut off shaking when timer reaches zero, green indicator light illuminates when unit is shaking, easy to navigate menu for advanced features
| Specifications for OHAUS Endeavor 5000 Light Duty Orbital Shakers | |||||
|---|---|---|---|---|---|
| 8331-02 | 8331-04 | 8331-06 | |||
| Model | e-E51LD0403 | e-E51LD0420 | e-E51LDMP03 | ||
| Control | Digital | ||||
| Motion | Oribital 3mm | Oribital 20mm | |||
| Speed Range | 100 to 800 rpm | 100 to 1200 rpm | 50 to 300 rpm | ||
| Speed Steps | 1 rpm increments | ||||
| Speed Accuracy | Above 100 rpm ±2% of set speed, Below 100 rpm ± 2 rpm | ||||
| Timer | Up to 99 hours 59 minutes | ||||
| Weight Capacity | 8.8 lb at 400 rpm linearly down to 2.2 lb at 800 rpm |
8.8 lb at 400 rpm linearly down to 2.2 lb at 800 rpm 1.1 lb at ≥900 rpm |
8.8 lb at 300 rpm | ||
| Volume Capacity | Standard Tray | Universal Platform (Sold Separately) |
4 Microplates or 2 x Microtube Racks or 2 x Microplates & 1 x Rack |
Standard Tray | Universal Platform (Sold Separately) |
| 7 x 10 mL | 39 x 10 mL | 7 x 10 mL | 39 x 10 mL | ||
| 6 x 125 mL | 12 x 125 mL | 6 x 125 mL | 12 x 125 mL | ||
| 6 x 250 mL | 8 x 250 mL | 6 x 250 mL | 8 x 250 mL | ||
| 4 x 250 mL | 6 x 500 mL | 4 x 250 mL | 6 x 500 mL | ||
| – | 3 x 1L | – | 3 x 1L | ||
| Stnadard Tray LxW | 11.75" x 8.75" | 11" x 7.75" | 11.75" x 8.75" | ||
| Tray Construction | Aluminum tray with 11 mounting points for accessories. Non-slip rubber mat included |
Aluminum tray with hardware to secure microplates and deepwell plates |
Aluminum tray with 11 mounting points for accessories. Non-slip rubber mat included |
||
| Drive System | Brushless DC Motor, Triple Eccentric | ||||
| Communication | RS232 | ||||
| Programming | On-board programming for 8 spearate, 5-step programs | ||||
| Recall Feature | Retrieve last 5 recently used settings | ||||
| Protection | IP21 | ||||
| L x W x H | 16.5" x 10.3" x 4.7" | ||||
| Net Weight | 16.5 lbs | ||||
| Working Environment | 14°F to 104°F / -10°C to 40°C, 80% RH, non-condensing | ||||
| Power Input | 24V C, 1.25A | ||||
| Item No. | Product Description | Model No. | Orbit | Speed Range | Unit of Measure | Your Cost | Purchase |
|---|---|---|---|---|---|---|---|
|
SHAKER ORBITAL E-E51LD0420 AM
8331-04
|
Light Duty Orbital Shaker for Microplates | e-E51LD0420 | 3 mm | 100 to 1200 rpm | Each |
$1,261.67/EA
|
|
|
SHAKER ORBITAL E-E51LDMP03 AM
8331-06
|
Light Duty Orbital Shaker for w/ Standard Tray | e-E51LDMP03 | 20 mm | 50 to 300 rpm | Each |
$970.83/EA
|
|
|
SHAKER ORBITAL E-E51LD0403 AM
8331-02
|
Light Duty Orbital Shaker for w/ Standard Tray | e-E51LD0403 | 3 mm | 100 to 800 rpm | Each |
$1,358.33/EA
|
