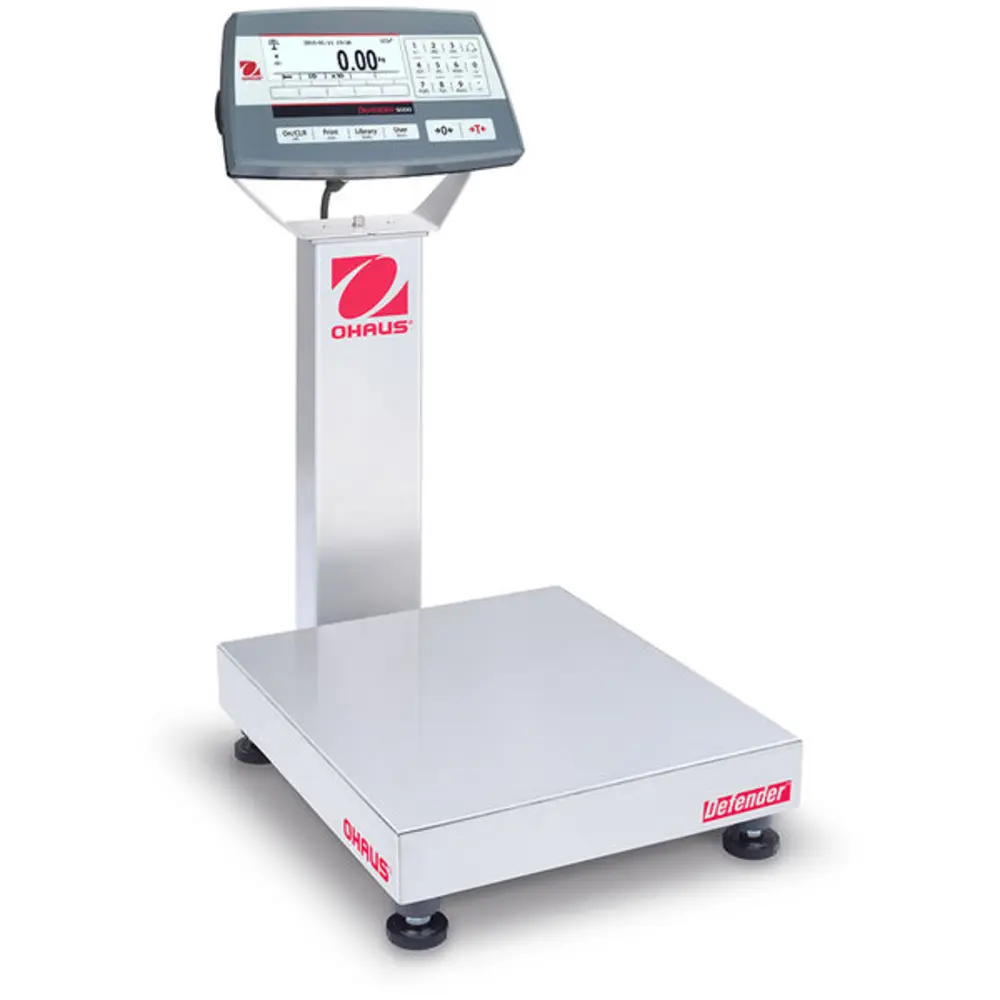

OHAUS Defender 5000 Bench Scale

Item No.:
8240-02
OEM Number:
8240-02
Capacity:
25 kg
Model No.:
D52P25RTR1
Readability:
1g
Unit of Measure:
Each
Your Cost:
$1,674.00
This item is not currently stocked. Allow 2-3 weeks. Please contact us if you'd like us to keep stock in the future. In Stock Add to Cart

This OHAUS Defender 5000 Bench Scale is ideal for a multitude of applications including production, packaging, inventory and shipping. Built durably and equipped with advanced features such as maximum configurability print output, GMP/GLP data output, library/user management, and multiple connectivity options, the Defender 5000 is designed to simplify demanding industrial and commercial applications.

Features most common applications including Parts Counting with APW optimization, Checkweighing or Checkcounting, Percent Weighing, Filling, and Dynamic Weighing or Display Hold. Many application modes eliminate the need for long and complicated manual calculations. GMP/GLP with time/date allows for traceability of results. Equipped with the included Micro SD card, the scale can support storage of up to 50,000 items and 1,000 user profiles. Weighing results can also be stored in Alibi or regular format, addressing all the user’s data storage needs.

Key Features

  • See results clearly on the large backlit display
  • Alpha-numeric keypad and function keys allow for simplified user experience. On-screen prompts and soft keys guide users through the operation
  • Durably constructed with a stainless-steel platform, silver-painted column, and aluminum load cell. Supports up to 6,250w NTEP and Measurement Canada certified resolution for legal-for-trade applications
  • Common industrial modes and supports a 50,000 item library and 1,000 user profiles which can be downloaded/uploaded for easy set-up with the included Micro SD Card. Also equipped with GLP/GMP output capability with time/date for result traceability. Alibi memory available.
  • Data output via built-in RS232 or optional interfaces including 2nd RS232/RS485/USB device, USB Host, Ethernet, Bluetooth/WiFi, Analog Output, and Discrete I/O with relays


Specifications for OHAUS Defender 5000 Bench Scale - D52P25RTR1
Maximum Capacity 50 lb (25 kg)
Readability 0.002 lb (1 g)
Readability (Certified) 0.01 lb (5 g)
Platform Size 14 in x 12 in (355 mm x 305 mm)
Legal for Trade NTEP Certified; Measurement Canada Approved
Power Rechargeable Battery (Not Included); AC Power   (Included)
Battery Life 20 Hours with Rechargeable Battery
Communication Ethernet (Accessory); 2nd RS232/RS485/USB (accessory);
RS232 (Included); USB Host (Accessory); WiFi/Bluetooth (accessory)
Dimensions (LxHxW) 19.3 in x 22.6 in x 12 in
Display Dot matrix LCD with white LED backlight
Net Weight 24.3 lb (11 kg)
Outputs 4 - 20mA; 2 In/4 Out digital I/O
Platform Construction Stainless Steel
Protection Rating Not Applicable
Second Scale Input Not Applicable
Tare Range To capacity by subtraction
Units of Measurement Metric Tons; Gram; Kilogram; Pound; Tonne; Custom; Ounce; Pound:Ounce
Working Environment 14°F – 104°F, 80%RH, non-condensing
(-10°C – 40°C, 80%RH, non-condensing)
