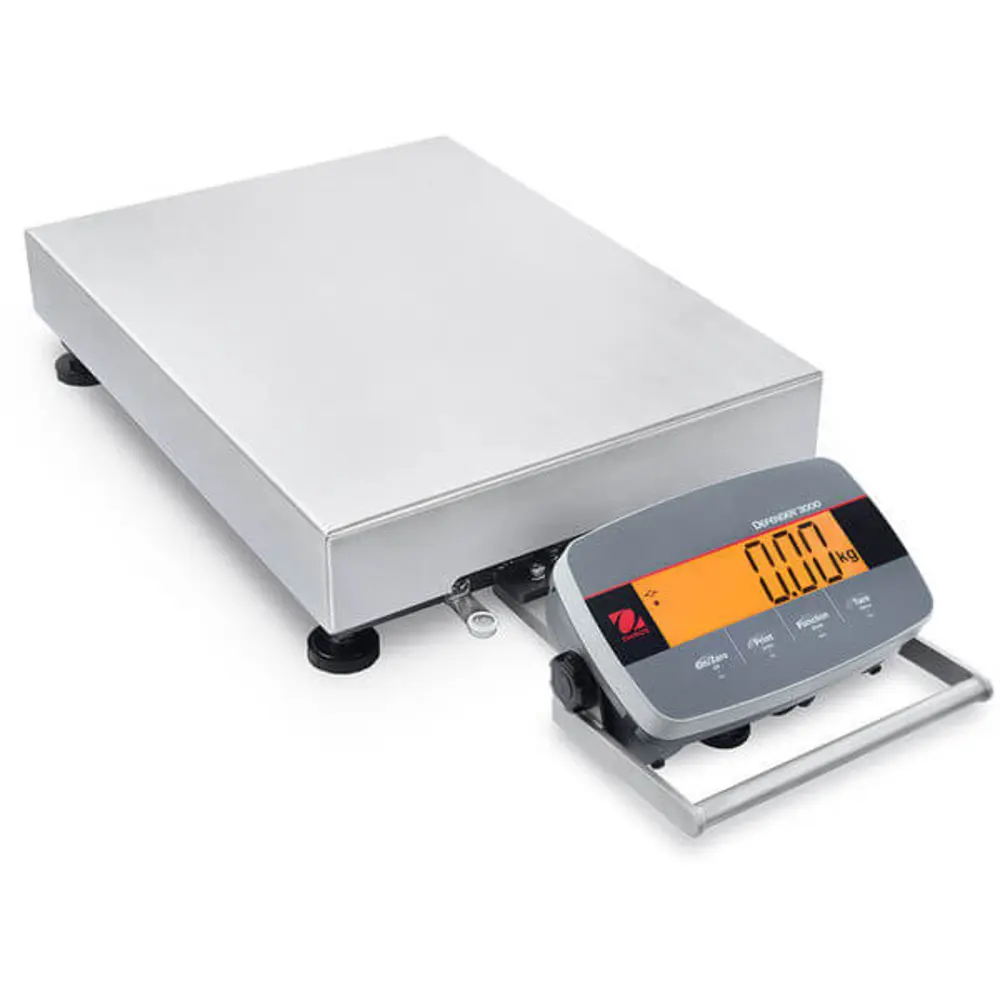

OHAUS DEFENDER 3000 Front Mount Bench Scales
The OHAUS DEFENDER 3000 Front Mount Bench Scales are ideal for general weighing, simple counting, and check weighing applications in production, packaging, warehouse, inventory, shipping, and receiving areas. The Defender 3000 Series features a simple, yet rugged base design and indicators with tactile keys, multicolor backlit LCD display, and AC or battery operation.
Key Features
- Results are clearly shown using the large, bright backlit LCD display. In Checkweighing mode, the display changes color (yellow/green/red) to alert when within the target weighing range
- Tough industrial scale with 304-stainless steel platform, powder-coated tubular frame and aluminum load cell. Indicator features a double ABS housing and powder coated steel mounting bracket
- Features software for Parts Counting, Checkweighing, and Totalization.
- Includes RS232 with optional second port USB Device or Ethernet for printing or data connectivity
| Specifications for OHAUS Defender 3000 Front Mount Bench Scales | |||||||
|---|---|---|---|---|---|---|---|
| Model | 3109-14 | 3109-19 | 3109-23 | 3109-22 | 3109-10 | 3109-12 | 3109-17 |
| Capacity | 15 kg | 30 kg | 75 kg | 75 kg | 150 kg | 150 kg | 300 kg |
| Readability | 2 g | 5 g | 10 g | 20 g | 50 g | ||
| Max. Displayed Resolution | 1:7,500 | 1:6,000 | 1:7,500 | 1:6,000 | |||
| Linearity / Repeatability | ±1d | ||||||
| Indicator | ABS Indicator | ||||||
| Mount | 304 stainless steel front-mount bracket with handle | ||||||
| Base Construction | Stainless steel removeable weighing platform, powder-coated steel base construction, silicon sealed aluminum loadcell against moisture |
||||||
| Safe Overload Capacity | 150% of maximum capacity | ||||||
| Stabilization Time | Within 1 second | ||||||
| Operating Temp. Range | 14°F to 104°F / -10°C to 40°C | ||||||
| Dimensions | 14" x 12" x 4.8" | 21.7" x 16.5" x 5.3" | 25.6" x 19.7" x 5.9" | ||||
| Approx. Net Weight | 21.3 lb. | 34.3 lb. | 56.6 lb. | ||||
| Item No. | Capacity | Dimensions | Unit of Measure | Your Cost | Purchase |
|---|---|---|---|---|---|
|
BENCH SCALE I-D33P75B1L5 AM
3109-22
|
75 kg | 21.7" x 16.5" x 5.3" | Each |
$883.06/EA
|
|
|
BENCH SCALE I-D33P30B1R5 AM
3109-19
|
30 kg | 14" x 12" x 4.8" | Each |
$764.65/EA
|
|
|
BENCH SCALE I-D33P75B1R5 AM
3109-23
|
75 kg | 14" x 12" x 4.8" | Each |
$764.65/EA
|
|
|
BENCH SCALE I-D33P150B1X5 AM
3109-12
|
150 kg | 25.6" x 19.7" x 5.9" | Each |
$1,137.43/EA
|
|
|
BENCH SCALE I-D33P15B1R5 AM
3109-14
|
15 kg | 14" x 12" x 4.8" | Each |
$764.65/EA
|
|
|
BENCH SCALE I-D33P300B1X5 AM
3109-17
|
300 kg | 25.6" x 19.7" x 5.9" | Each |
$1,137.43/EA
|
|
|
BENCH SCALE I-D33P150B1L5 AM
3109-10
|
150 kg | 21.7" x 16.5" x 5.3" | Each |
$883.06/EA
|
