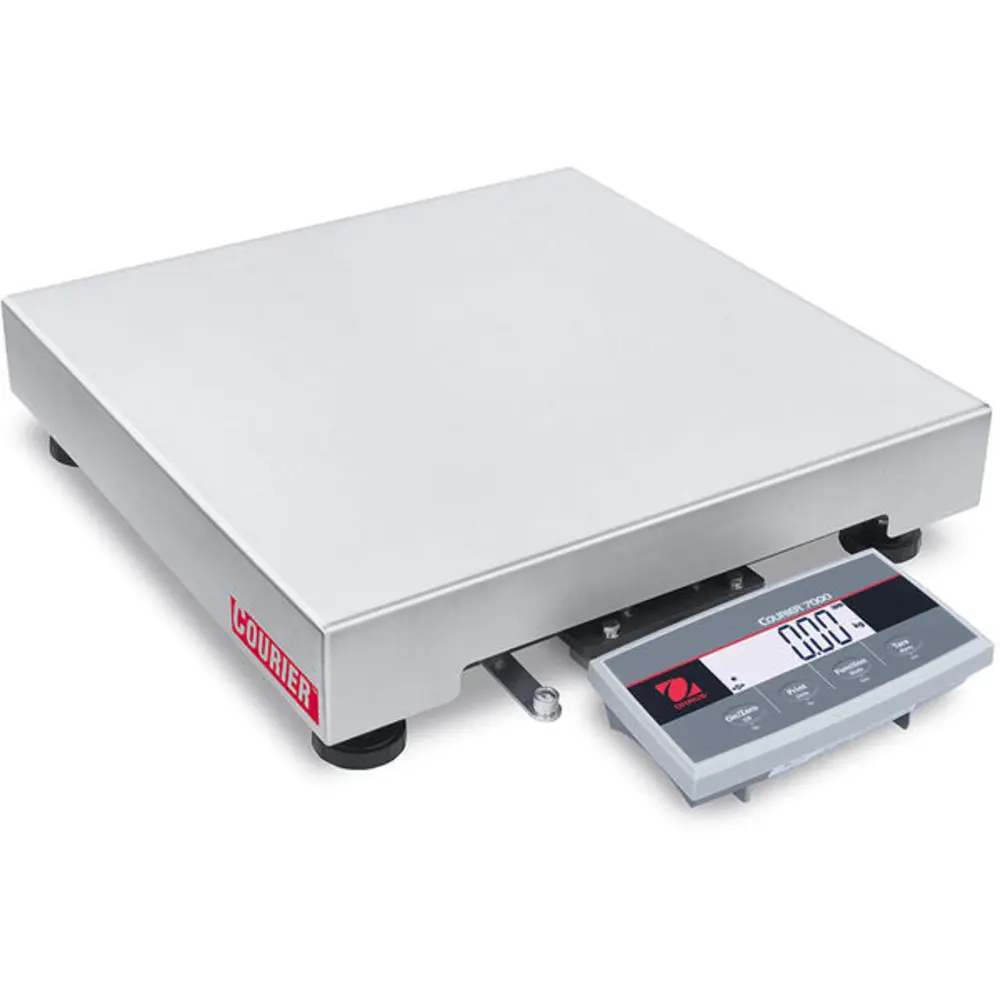

OHAUS Courier 7000 Shipping Scales

Simple to use with four-key operation, the OHAUS Courier 7000 Shipping Scales can be quickly set up with UPS WorldShip, FedEx Ship Manager, and other systems via the standard USB-HID interface. Weights can also be integrated into 3^rd party software using RS232 output. Additional data connections include Ethernet TCP/IP, 2^nd RS232 or choice of Bluetooth or WiFi.

The sturdy power-coated carbon steel frame and thick stainless-steel platform ensures years of use in heavy daily shipping use. Precise loadcells and software for NTEP/Measurement Canada use are included. Ball top and roller top platform options can be use in conveyor and warehousing to reduce operator stress and workload, increasing efficiency.

The large, bright display clearly shows weights in dimly lit warehouse and loading dock areas. The indicator comes base mounted but can be attached to a column for display above the platform. A second Remote Display and column can be used to show the results for added verification.

Application Modes: Display Hold, Totalization, Weight Alert™, Dynamic Weighing

Key Features

• Designed to withstand constant use from offices to distribution centers
• Fast setup with connection to shipping systems
• “GeoCode” application for local calibration adjustment
• Display Hold retains weight data and presents it on a large, easily accessible backlit display
• Weight Alert™ mode alerts users to packages that may be too heavy in relation to defined values
• Can run on USB type-C or disposable battery power



Specifications for OHAUS Courier 7000 Shipping Scales
	8324-02	8324-04	8324-06	8324-08
Model No.	I-C71M125L	I-C71M15R	I-C71M50L	I-C71M75R
Capacity	15 kg	75 kg	50 kg	125 kg
Readability	0.005 kg	0.05 kg	0.01 kg	0.05 kg
Maximum Displayed Resolution	1:3,000		1:5,000
Weighing Units	g, kg, lb, oz, lb:oz
Application Mode	Weighing, Dynamic/Display Hold, Totalization, Weight   Alert™
Display	1.1" / 28 mm digit height, 6-digit, 7 section   LCD display with white backlight
Keyboard	4 mechanical function keys
Construction	ABS Plastic Indicator Housing; Stainless-Stee Platform with carbon steel frame and rubber leveling feet
Stabilization Time	1 second
Auto-Zero Tracking	Off, 0.5 d, 1 d, or 3 d
Zeroing Range	2% or 100% of capacity
Interface	Standard: USB Type-C, RS232, Mini DIN for optional interfaces; Optional: 2nd RS232, Ethernet, Wi-Fi/Bluetooth
Power	Dry cell battery:4 x AA (LR6) Batteries or AC Power adapter: 100-240VAC ~ 0.5A 50/60Hz; Power Output: 5.0 VDC 1.0A or USB cable (USB connection to PC); Battery Life: 70 hours continuous use with backlight off
Operating Temp. Range	14°F to 104°F / -10°C to 40°F
Safe Overload Capacity	150% of capacity
Pan Dimensions	12.0" x 14.0"		18.0" x 18.0"
Net Weight	17.6 lb.		39.6 lb.
