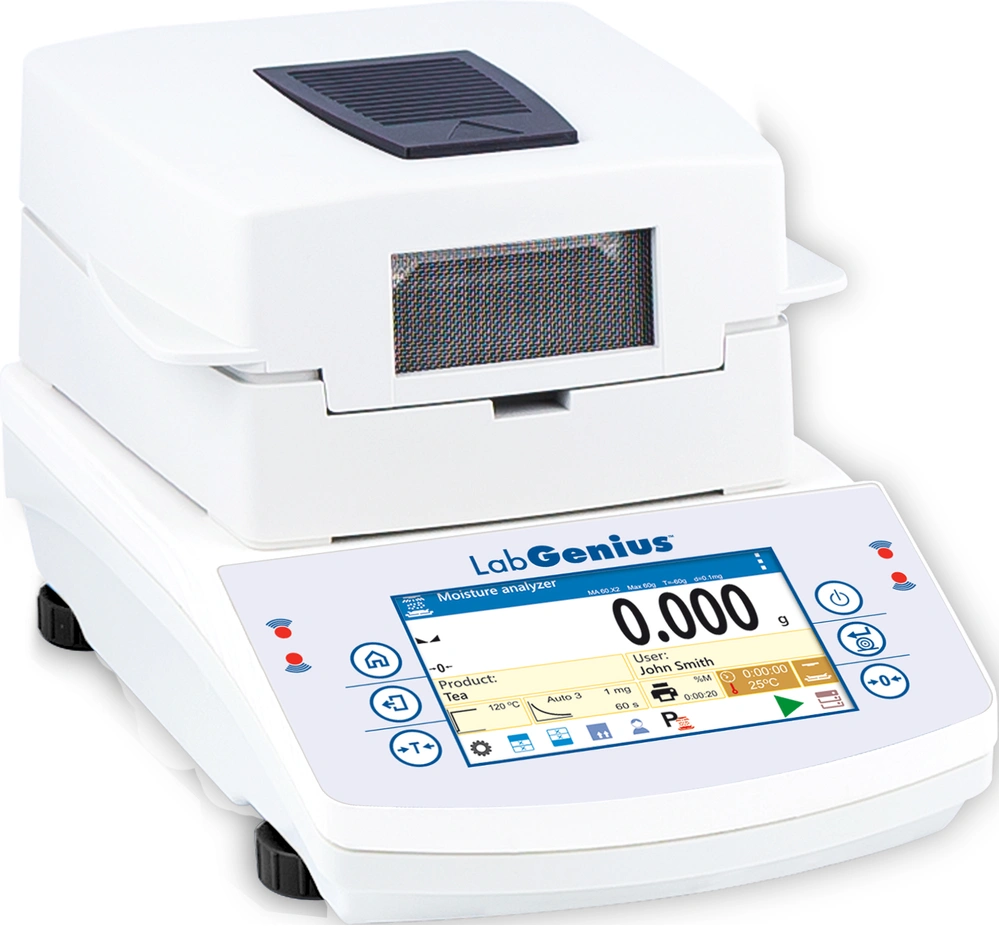

LabGenius Moisture Balances

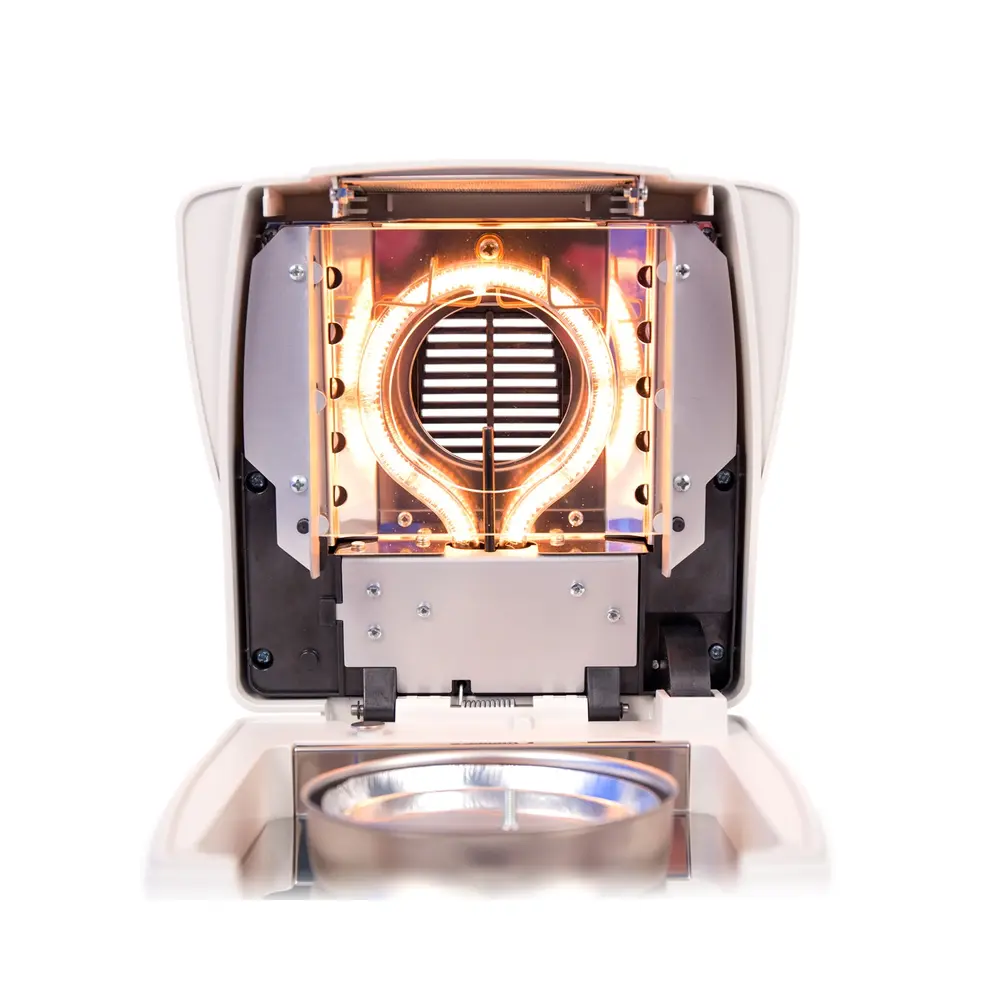

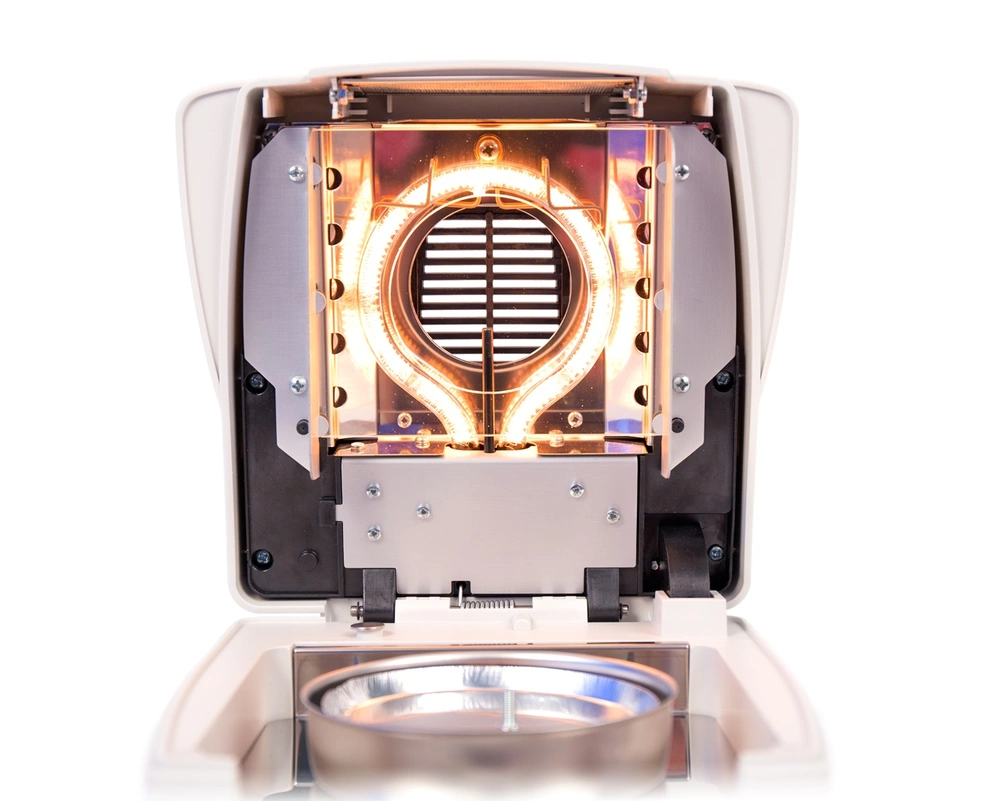

These LabGenius Moisture Analyzers incorporate state-of-the-art features for advanced moisture content analysis. The moisture content results are clearly displayed on the large, easy-to-read color capacitive touch screen. Easily navigate through menus and setup experimental procedures. The IR heating element provides uniform heating of the sample to help prevent against burning of the sample. Connect the moisture analyzer to a computer, printer, or network via the RS232, USB (2, Type A & B), or wirelessly.
Key Features
- 4-drying modes including standard, mild, quick, and step to accurately determine moisture content in various substances
- GLP documentation – store up to 100 users, 5000 products, and 100 packagings, and 200 drying programs in memory
- Allows for customization of switch-off times for end of moisture content analysis (automatic, time-defined, or manual switch-off)
- 5” Color Touchscreen
- Connect to a computer, printer, or network via the RS232 (2), USB (2, type A&B), or WiFi Ports
- 3-Year Warranty
| Specifications for LabGenius Moisture Analyzers | ||
|---|---|---|
| Model | DM-50 | DM-50.H |
| Max Capacity | 50 g | |
| Readability | 1 mg | 0.1 mg |
| Tare Range | -50 g | |
| Moisture Readout Accuracy | 0.00% | |
| Moisture Content Repeatability | 0.05% (sample weight of 2g) 0.01% (sample weight of 10g) |
|
| Max Sample Height | h = 20 mm | |
| Weighing Pan Size | Diameter 90mm (3.54"), h=8 mm | |
| Drying Temperature Range | max. 160°C | |
| Heating Module | IR Emitter | |
| Drying Mode | 4 Drying Modes (Standard, Quick, Step, Mild) |
|
| Auto Switch-off Options | 4 Options (Time-Defined, Automatic, Manual, User-Defined) |
|
| Working Temperature | +10°C to +40°C (+50°F to +140°F) | |
| Interface | RS232, USB-A, USB-B, Wi-Fi | |
| Power Supply | 110V | |
| Adjustment / Calibration | External | |
| Display | 5" Color Capacitive Touchscreen | |
| Gross Weight | 14.8 lbs | |
| Packaging Size | 18.5" x 15" x 13.4" | |
| Item No. | Alt. Part No. | Capacity | Model No. | Readability | Unit of Measure | Your Cost | Purchase |
|---|---|---|---|---|---|---|---|
|
Moisture Balances (LabGenius)
SCHDM-50
|
EF33258 | 50g | DM-50 | 1 mg | Each |
$2,520.29
|
|
|
Moisture Balances (LabGenius)
SCHDM-50.H
|
EF33257 | 50g / 120g | DM-50.H | 0.1 mg | Each |
$2,856.89
|
