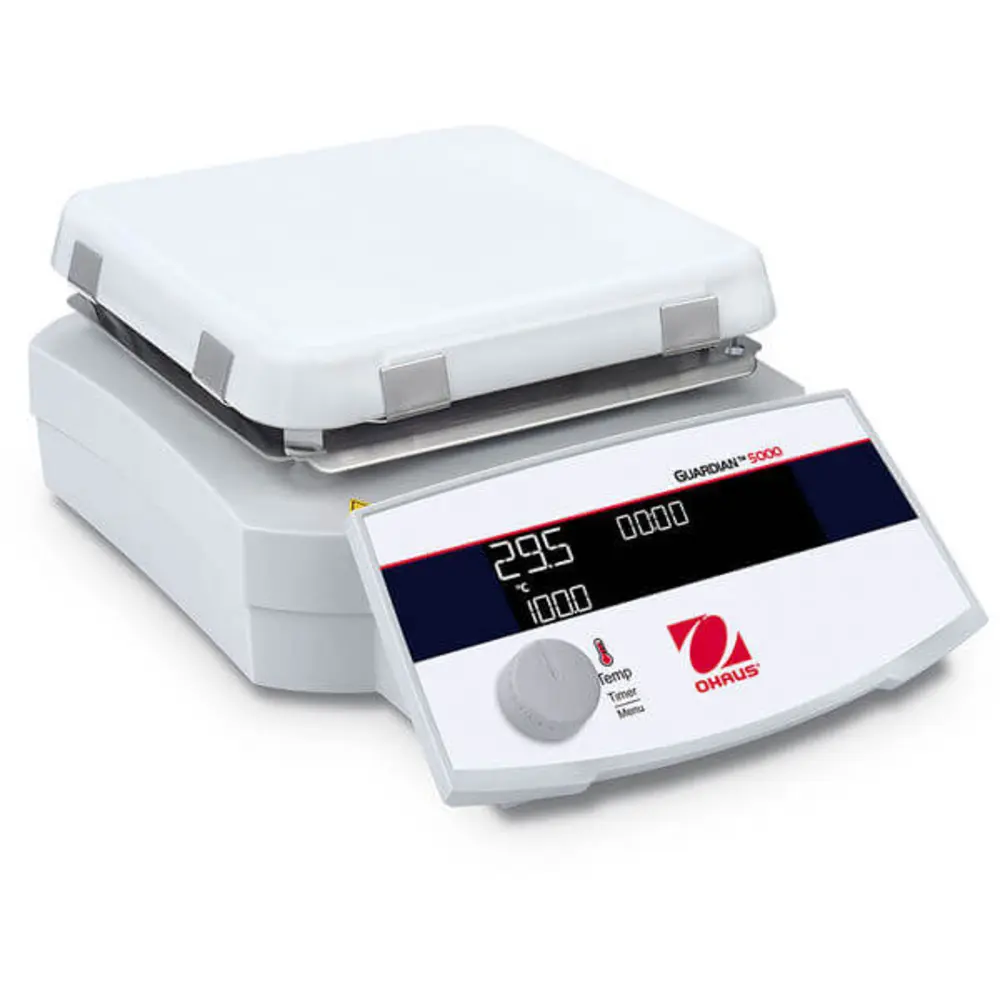

Guardian 5000 Hot Plates (OHAUS)
The Next Generation OHAUS Guardian 5000 Hot Plates are engineered for safety and versatility across research, academic, and industrial settings. They offer powerful heating, with premium hardware and software to support diverse users safely and reliably. These hot plates reach up to 550° and feature 3 temperature control modes for quick or precise heating without overshoot.
Key Features
- An intuitive user interface with a large, bright LCD screen with shite characters & knob button(s) allowing users friendly operation.
- SmartHeat™ allows users to adjust Set Temperature upper limit of the Top Plate, from 0° to 550°.
- SafetyHeat™ is an industry-leading early detection system that uses two independent safety controls to continuously monitor the electronics and shut off heating before an overtemperature condition occurs.
- Users can select the temperature ramping rate with the SmartRate™.
- Run Dry Protection System shuts off heating and alarms, if a probe-controlled heating is running without the probe tip submersed in the heating medium.
- RS232 port included for remote control or data logging
| Specifications for OHAUS Guardian 5000 Hot Plates | |
|---|---|
| 8251-01 | |
| Kit Model | 8251-02 |
| Function | Heating |
| Top Plate Size | 7 x 7" |
| Top Plate Material | Ceramic |
| Housing Material | Painted Aluminum |
| Display | 4.5 x 1.2" White Character LCD |
| Timer | 1 minute to 99 hours 59 minutes |
| Temperature Range | Ambient +5°C to 550°C |
| Temperature Increments and Readability |
0.5°C |
| Temperature Stability | ±1% Plate, below 100°C ±1°C and ±0.5% Probe, below 100°C ±0.5°C |
| Temperature Calibration (SPC) Set Points |
3 Points for Plate and 3 Points for Probe |
| Probe Connection | PT100, PT1000 (Class A) |
| Probe Temperature Accuracy | ±0.2°C + PT1000 (Class A) Tolerance |
| Heating Power | 1582W at 120V |
| Data Logging & Remote Control |
Built-In RS232; Optional RS232-USB Interface Kit; Optional RS232-Ethernet Interface Kit |
| IP Rating | IP32 |
| L x W x H | 12.94 x 8.69 x 4.56" |
| Working Environment | 41°F to 104°F, 80% RH, non-condensing 5°C to 40°C, 80%RH, non-condensing |
| Basic Model Net Weight | 8.6 lb / 3.9 kg |
| Electrical | 100-120V, 15A |
| Item No. | Product Description | Model No. | Unit of Measure | Your Cost | Purchase |
|---|---|---|---|---|---|
|
HP E-G52HP07C 120V AM -K1
8251-02
|
Guardian 5000 Hot Plate Kit: Includes Temperature Probe (530500590) & Probe Holder Kit (30973298) | E-G52HP07C -K1 | Each |
$746.60/EA
|
|
|
HOTPLATE E-G52HP07C 120V AM
8251-01
|
Guardian 5000 Hot Plate | E-G52HP07C | Each |
$486.60/EA
|
