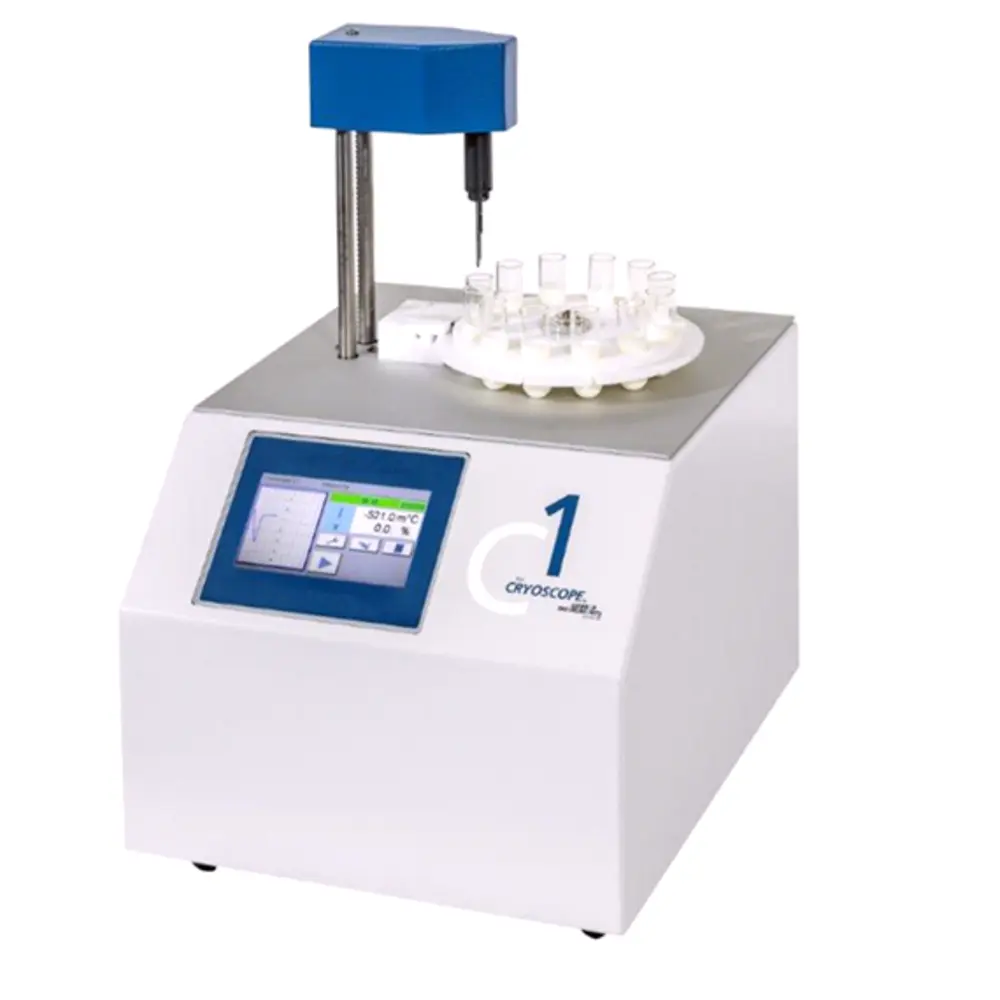

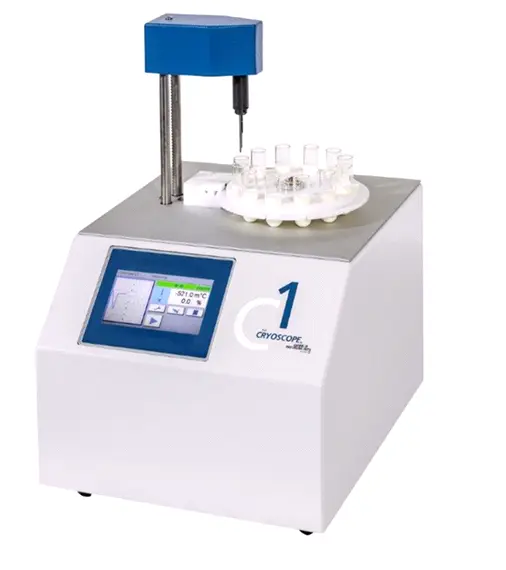

Gerber Instruments C1 and C1A Cryoscopes
The Gerber Instruments C1 and C1A Cryoscopes reliably and rapidly determine the freezing point in milk according to ISO5764/IDF 108. Designed for daily inspection of water content in raw milk, the instruments operate extremely quietly. Their dynamic cooling system ensures maximum sample throughput, even at ambient temperatures of up to 35°C.
Includes: 250 mL calibration standard 408 (05.5024), 250 mL calibration standard 512 (05.5025), 250 mL calibration standard 600 (05.5026), 250 mL heat transfer fluid (05.5027), 250 mL coolant C1 (05.5028), 2.0 mL sample tubes with ring marks (05.5020), user manual (05.25186), instrument-Setup (05.25184), power cable (05.25086).
Key Features
- Robust and compact design
- Easy to calibrate
- Adjustable amplitude of the stirrer
- Time or plateau mode selectable
- Indication in m°C or m°H
- Touchscreen
- Data output to an external printer and/or PC selectable
- Worldwide support over the internet possible
- Sample volume: 2.0 ml or 2.5 ml
- Measuring range: 0 to -1000 m°C/m°H
- Resolution: 0.1 m°C/ m°H
- Power supply: 110 - 240 VAC/50 - 60Hz
| Specifications for Gerber Instruments C1 and C1A Cryoscopes | ||
|---|---|---|
| 05.25700 | 05.25701 | |
| Model | Manual | Automatic |
| Test Time | Approximately 90 sec (time mode 30 sec) |
|
| Sample Capacity | Single | 12 with Sample Changer |
| Units | m°C or m°H | |
| Resolution | 0.1 m°C/m°H | |
| Measuring Range | 0 to -1000 m°C/m°H | |
| Repeatability | ±2 m°C/m°H (1 S.D) | |
| Ambient Temperature | 15 to 35°C with full sample throughput |
|
| Power Supply | Input 110-240 VAC (50/60Hz) | |
| Mains Unit | Output 24V/max. 90W | |
| W x D x H | 28 x 42 x 32 cm (measuring head down) |
|
| Weight | 11 kg | |
| Warranty | 2-Years | |
| Item No. | Capacity | Model No. | Unit of Measure | Your Cost | Purchase |
|---|---|---|---|---|---|
|
CRYOSCOPE C1A-NK; AUTOMATED; 12 TESTS
05.25701
|
12 with Sample Changer | C1A - Automatic | Each |
$10,179.48/EA
|
|
|
CRYOSCOPE C1; SINGLE SAMPLE; MANUAL VERSION
05.25700
|
Single | C1 - Manual | Each |
$8,252.64/EA
|
