Anton Paar SmartRef Digital Refractometer
The Anton Paar SmartRef Digital Refractometer is a compact, portable solution for fast and accurate measurement of refractive index, Brix, salinity, and other concentration values. Designed for a wide range of applications, SmartRef delivers measurement results in under 2 seconds using only 0.4 mL of sample. With a measuring range of 0 to 85 °Brix and accuracy of ±0.2 °Brix, it provides reliable results for routine testing and quality control.

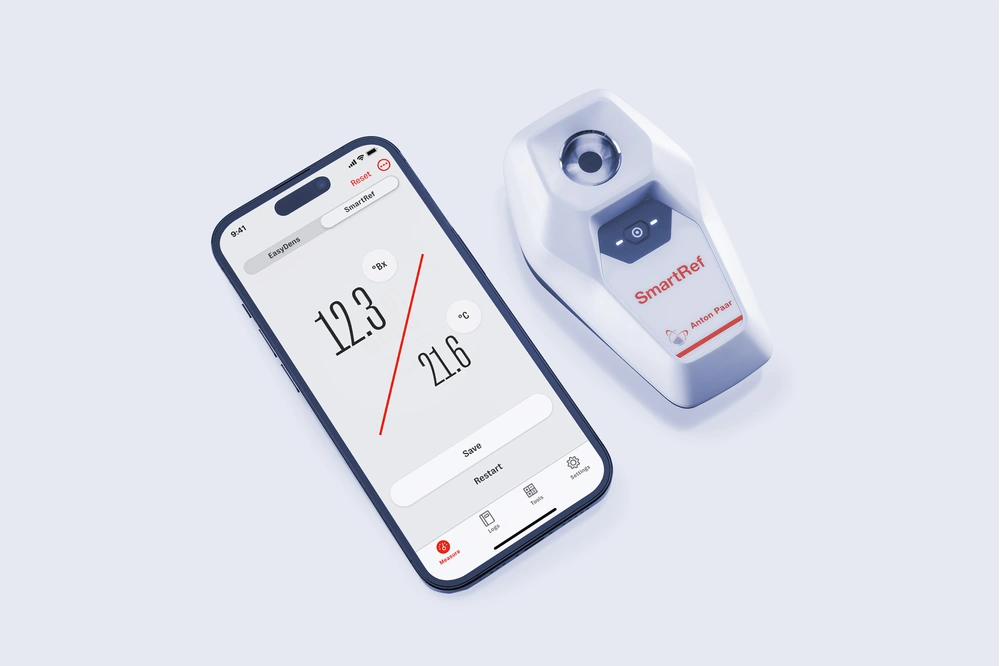

SmartRef connects wirelessly via Bluetooth to a free iOS or Android mobile app, giving users intelligent guidance during measurements as well as convenient tools for storing, managing, visualizing, and sharing data. Automatic temperature compensation eliminates the need for manual correction tables, while the stainless-steel sample well and IP66-rated housing make the instrument durable and easy to clean. SmartRef can be used for testing beer wort, wine, juice, honey, fruits and vegetables, saltwater, and other liquids, making it a versatile refractometer for laboratory, production, and field applications.
SmartRef is suitable for a variety of testing and quality-control applications including: beer and wort extract measurement, wine and grape sugar testing, juice and beverage testing, honey moisture measurement, fruit and vegetable sweetness testing, saltwater aquarium and pool salinity management, maple syrup and other sugar-containing products, sauce and jam concentration testing, hot-transfer fluid concentration measurement, and routine laboratory and production quality control.
SmartRef digital refractometer comes with 2 AAA 1.5V alkaline batteries and manufacturer documentation.
Key Features
- Fast measurement results in under 2 seconds
- Wide measuring range of 0 to 85 °Brix
- Brix accuracy of ±0.2 °Brix
- Requires only 0.4 mL of sample
- Automatic temperature compensation for consistent results
- Free iOS and Android mobile app
- Bluetooth Low Energy wireless connectivity
- App-based storage, visualization, management, and sharing of measurement data
- SmartGuide+ provides measurement guidance and helps identify potential measurement problems
- Continuous measurement mode for more detailed sample analysis
- Automatic detection of high ambient light and monitoring of prism and sample conditions
- Stainless-steel and glass sample well for easy cleaning
- IP66-rated housing for protection against dust and water
- One-point zero adjustment using distilled water
- Supports multiple measurement units and application-specific scales
- Battery life of approximately 10,000 measurement
| Specifications for Anton Paar SmartRef Digital Refractometer | |||
|---|---|---|---|
| Measuring Range | Accuracy | Resolution | |
| Refractive Index (RI) at 20°C |
1.3330 – 1.5040 | ±0.0003 | 0.0001 |
| Brix | 0° to 85° | ±0.2° | 0.1° |
| Sample Temperature | 10 °C – 100 °C (50° F – 212 °F) |
0.5°C (0.9°F) |
0.1°C (0.1°F) |
| PSU (practical salinity units) |
0 – 50 | ±2 | 1 |
| Salinity ppt (parts per thousand) |
0 – 150 | ±2 | 1 |
| Salinity S.G (20/20) | 1.000 – 1.114 | ±0.002 | 0.001 |
| General Specifications | |||
| Sample Volume | 0.4 mL | ||
| Measurement Time | < 2s | ||
| ATC 20°C % Brix | 10°C – 100°C (50°F – 212°F) | ||
| ATC 20°C PSU, ppt, S.G (20/20) |
10°C – 40°C (50°F – 104°F) | ||
| Mobile Operating System | Android and iOS | ||
| Data | |||
| L x W x H | 4.3" x 2.5" x 1.4" | ||
| Weight (incl. batteries) | 0.31 lbs | ||
| Power Supply | 2x AAA 1.5V LR03 alkaline batteries (included) or AAA NiMH rechargeable batteries |
||
| Enclosure Rating | IP66 according to IEC 60529 | ||
| Conditions | |||
| Ambient/Storage Temp. | 10°C – 40°C (50°F – 104°F) | ||
| Air Humidity | 5% RH – 95% RH, non-condensing | ||
| Battery Lifetime | ~10,000 measurements | ||
| Interface | Bluetooth™ Low Energy | ||
| Frequency Band | 2400 MHz – 2480 MHz | ||
| Transmitter Power | 7.5 kBm max. (5.6 mW max.) | ||
