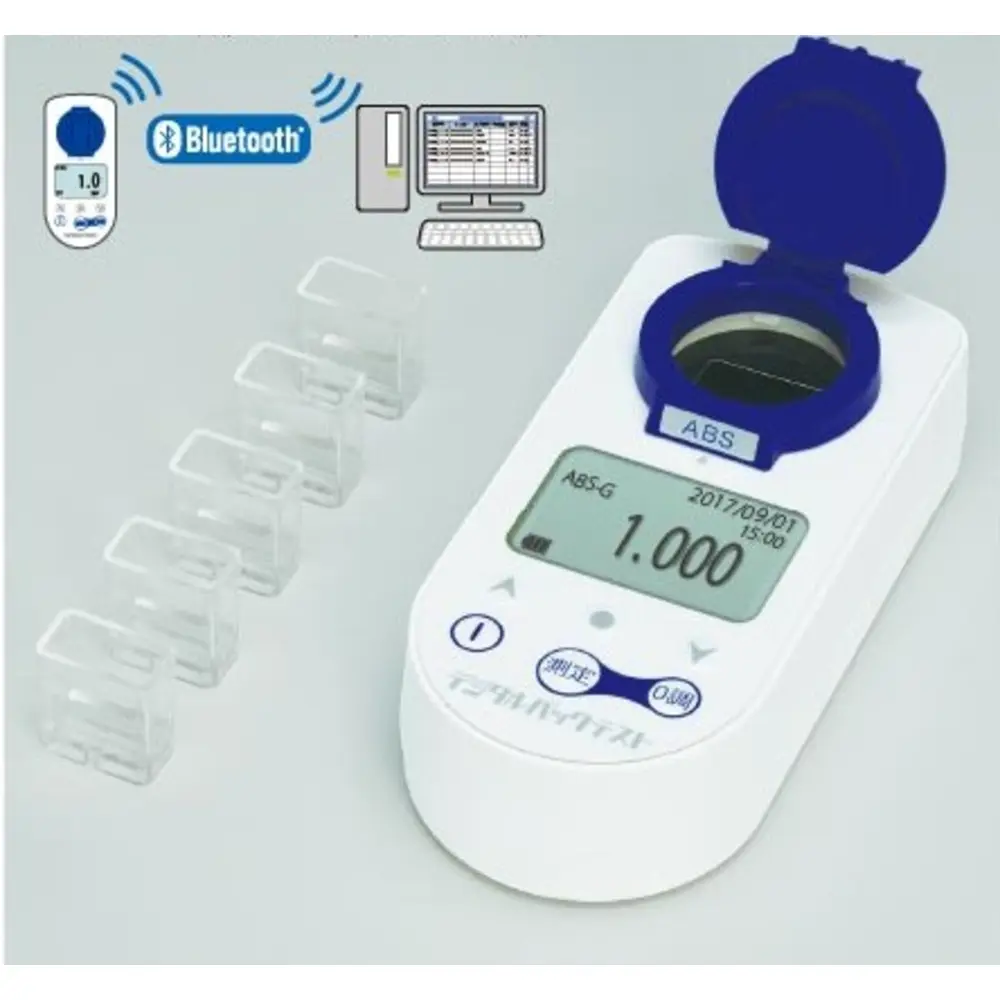

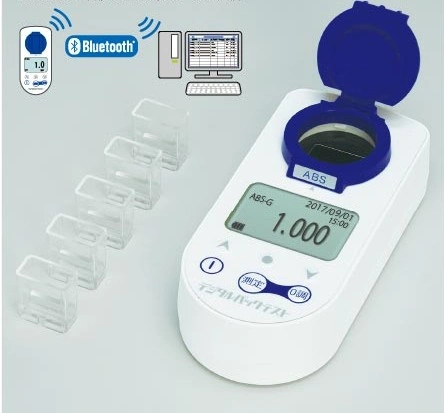

Absorbance Meter RGB
Absorbance Meter RGB can measure absorbance at one of three wavelengths (ABS-R: 615nm, ABS-G: 525nm, ABS-B: 470nm). Recommended for use with the Kikkoman Histamine Test Kit.
| Specifications for Absorbance Meter RGB | |
|---|---|
| Measurement range (absorbance) | -1.500 to 1.500 Abs |
| Measurement principle | Absorbance measurement using LEDs |
| Contents | Includes 5 dedicated cups, 3 AAA alkaline batteries, 1 instruction manual, and 1 usage guide. |
| Measurement wavelength | R: 615nm G: 525nm B: 470nm |
| Light source | LED |
| Cell | Dedicated cup (1.5 mL) Material: Polystyrene Optical path length: 20 mm |
| Cell dimensions | 13L x 23W x 25H mm |
| display | LCD (graphics type) |
| Data memory | 50 items |
| Data transmission | Bluetooth LE (Ver. 4.1) |
| Main unit dimensions | 145L x 68W x 48H mm |
| Main unit weight | Approximately 210g (including batteries) |
| Operating temperature | -5°C to +50°C, Humidity 90% Rh or less (non-condensing) |
| Test water temperature | As a general rule, 20-25°C (without condensation) |
| Power supply | 3 AAA alkaline batteries |
| Number of battery life measurements |
Approximately 3,000 times |
| Protective structure | IP65 (with battery cover closed) |
| Packaging outline | Approximately 165L × 110W × 65H mm |
| Packing weight | Approximately 340g |
| Material | Body: ABS, Lid: TPE, Dedicated cup: PS |
| Additional functions | Auto power off, clock function |
