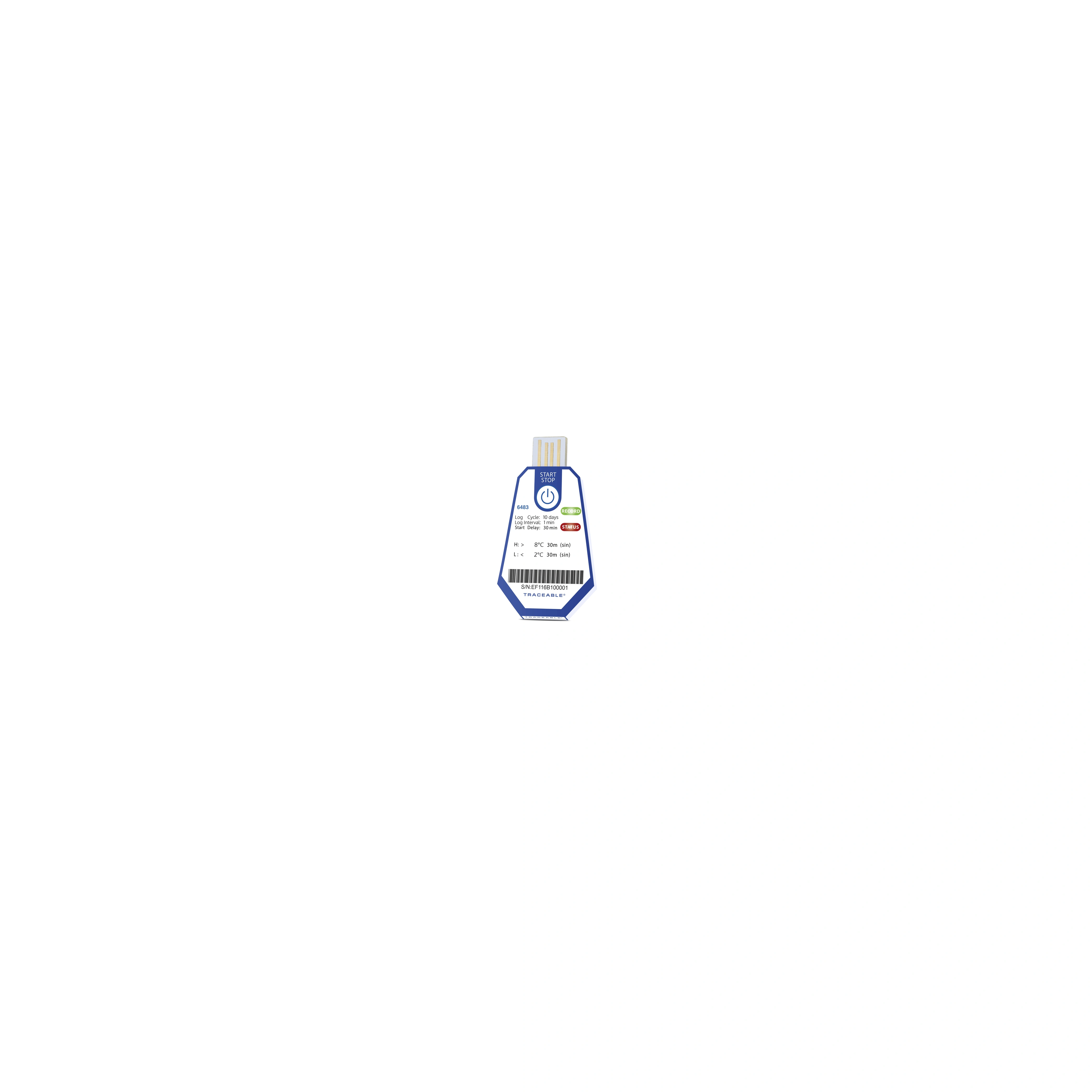

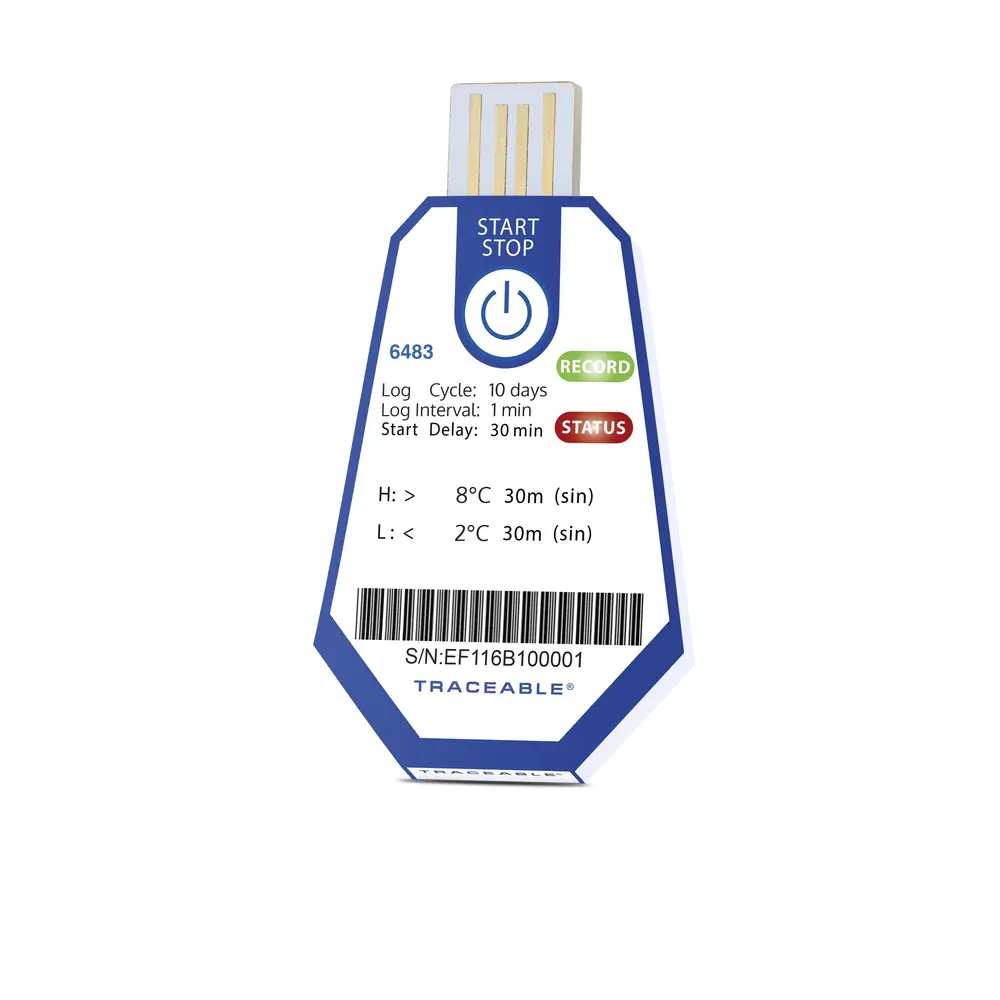

Pre-programmed for monitoring refrigerated transport.

• Alarm parameters designed for Cold-Chain monitoring
• Supplied with Traceable® to NIST Certificate
• Download directly to PC—No software required

Easy to Use

Right-out-of-the-box, use logger to track environmental conditions of reagents, clinical samples, vaccines, pharmaceuticals, and food items during transport. Compact, single-use dataloggers fit anywhere—even inside a small cooler. No special software or driver is required for set-up or download data. Press start to begin recording crucial temperature data, 30 minute time delay before logging begins.

Flashing Red and Green LED indicate logger is recording data, stopped recording, and if an alarm has been triggered. Logging duration runs from either 10, 30, 60, or even 90 days. Logging Intervals update either every 1, 3, 6, or 10 minutes.

Temperature Range: –30.0 to 70.0°C (–22.0 to 158.0°F); resolution: 0.1°C; accuracy: ±0.5°C/±0.9°F (–20 to 40°C); ±1°C/±1.8°F otherwise. Pre-programmed alarm parameters for specific applications. Cold transport alarm parameters: 2 to 8°C (35.6 to 46.4°F) An alarm is triggered when temperatures are outside the optimal range for more than 5 minutes.

Automatic PDF data report

Plug logger into any PC USB port and a PDF report is automatically generated containing data summary, graph, and user-initiated marks.

Protective plastic pouch keeps logger dry

Water-resistant design (IP67) eliminates concerns when shipping materials with cold packs, ice, or in damp environments. DO NOT REMOVE Datalogger from the protective plastic pouch until data download.

Traceable to NIST for accuracy

Single-point, batch calibrated Traceable® Certificate which assures accuracy from an ISO/IEC 17025:2005 (1750.01) calibration laboratory accredited by A2LA. It indicates traceability of measurements to the SI units through NIST or other recognized national measurement institutes (NMI) that are signatories to the CIPM Mutual Recognition Agreement.

Specifications
